About this product

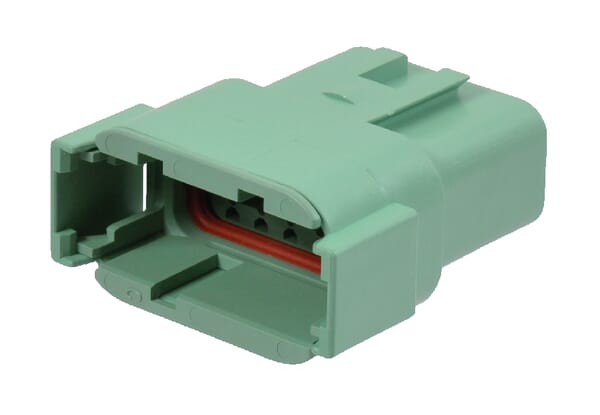

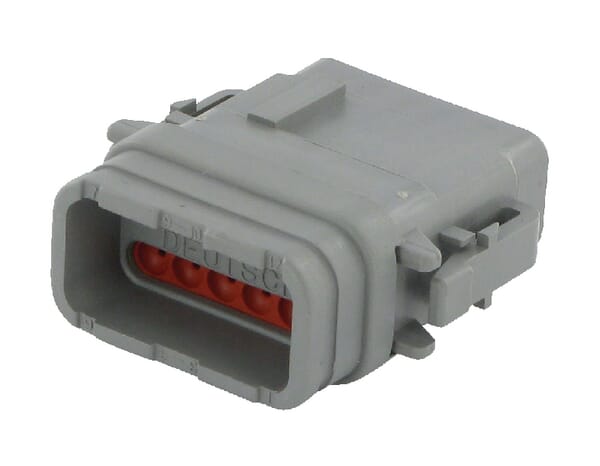

A 12-pole female plug housing in the Deutsch DTM Series, supplied as a single piece for self-assembly applications. The housing is constructed from thermoplastic with a silicone seal and integrated cable seal, designed for use on or near internal combustion engines, gearboxes, and heat-generating vehicle components, as well as lighting circuits. It accommodates AWG 16 to 24 (1.00 mm² to 0.2 mm²) cables and features pin size 20. The connector is rated for a nominal voltage of 1500 V with a continuous current capacity of 7.5 amperes at 125 °C maximum operating temperature; minimum operating temperature is −55 °C. Protection rating IP 69, 20, and 6K9K. The housing employs modular design with separate components that allow plug self-assembly, and includes encoding options: type A (grey), B (black), C (green), or D (brown). The product measures 45 mm length × 40 mm width × 21 mm height and weighs 18 g. It complies with DIN 40050 standard.
Product details
| Application range | On or in internal combustion engines, gearboxes and other heat-generating vehicle components, Lights, For AWG cables 16 to 24 or 1.00 mm² to 0.2 mm² |
|---|---|
| Benefits | Easy mounting |
| Connection 1, type - male/female | Female |
| Consists of | Individual components, Plug self-assembly |
| Content in sale unit | 1 pcs |
| Details | Modular design |
| DIN standard | 40050 |
| Long description | Deutsch - DTM suitable for on or around combustion engines, transmissions and other heat-producing vehicle parts. |
| Max working temperature | 125 °C |
| Min working temperature | -55 °C |
| Nominal voltage | 1500 V |
| Number of poles | 12 |
| Product details | Lighting, For cables AWG 16 to 24 or 1.00mm² to 0.2mm², Thermoplastic housing, Silicone seal, Integrated cable seal, Key type A grey, B black, C green or D brown, 7.5 amps at 125°C constant load, Pin size 20 |
| Properties | Thermoplastic housing, Silicone seal, Integrated cable seal, Encoding type A: grey, B: black, C: green, D: brown, 7.5 ampere at 125°C continuous use, Pin size: 20 |
| Pros | Modular design, Easy to assemble, Separate components, Assemble plugs yourself |
| Protection class IP | 69, 20, 6K9K |
| Series | DTM |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 18 g |
| Dimensions | 45 × 40 × 21 mm |
| Dangerous goods | No |
