£9.44
excl. VAT
£11.33 incl. VAT
£11.33
incl. VAT
£9.44 excl. VAT
In stock
Expected to ship on Friday 18 September

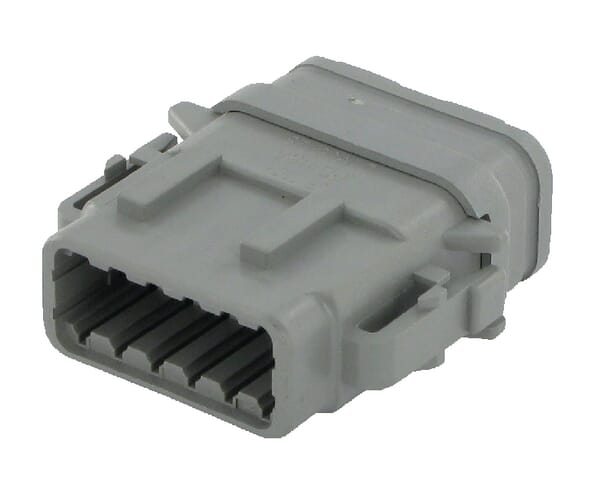

Product details
| Application range | On or in internal combustion engines, gearboxes and other heat-generating vehicle components, Lights, For AWG cables 16 to 24 or 1.00 mm² to 0.2 mm² |
|---|---|
| Benefits | Easy mounting |
| Connection 1, type - male/female | Male |
| Consists of | Individual components, Plug self-assembly |
| Content in sale unit | 1 pcs |
| Details | Modular design |
| DIN standard | 40050 |
| Housing colour | Grey |
| Long description | Deutsch - DTM suitable for on or around combustion engines, transmissions and other heat-producing vehicle parts. |
| Max working temperature | 125 °C |
| Min working temperature | -55 °C |
| Nominal voltage | 1500 V |
| Number of poles | 12 |
| Product details | Lighting, For cables AWG 16 to 24 or 1.00mm² to 0.2mm², Thermoplastic housing, Silicone seal, Integrated cable seal, Key type A grey, B black, C green or D brown, 7.5 amps at 125°C constant load, Pin size 20 |
| Properties | Thermoplastic housing, Silicone seal, Integrated cable seal, Encoding type A: grey, B: black, C: green, D: brown, 7.5 ampere at 125°C continuous use, Pin size: 20 |
| Pros | Modular design, Easy to assemble, Separate components, Assemble plugs yourself |
| Protection class IP | 69, 20, 6K9K |
| Series | DTM |
| Unit | Each |
Logistics
| EAN | 8719607050593 |
|---|---|
| Unit of measure | EA |
| Weight | 13 g |
| Dimensions | 40 × 39 × 18 mm |
| Dangerous goods | No |
You might also like
BPA000250341
TE Connectivity DEUTSCH Plug housing male, grey, 12 poles Series DTM (1x), Deutsch DSDTM0612SDE007
£8.63 excl.
£10.36 incl.
In stock
Expected to ship on Friday 18 September
BPA000250406
TE Connectivity DEUTSCH Plug housing 21 P. Female HDP20 DSHDP262421SNL017
£51.13 excl.
£61.36 incl.
In stock
Expected to ship on Friday 18 September
BPA000250330
TE Connectivity DEUTSCH Plug housing female, 0.2-1mm² 2 poles, Deutsch DSDTM042P
£1.85 excl.
£2.22 incl.
In stock
Expected to ship on Friday 18 September
BPA000250466
TE Connectivity DEUTSCH Connector locking device 12 Pole Male DSW12P
£0.37 excl.
£0.44 incl.
In stock
Expected to ship on Friday 18 September
BPA000250270
TE Connectivity DEUTSCH Plug housing 50 P. Female DRC DSDRC2650S01
£71.93 excl.
£86.32 incl.
In stock
Expected to ship on Friday 18 September

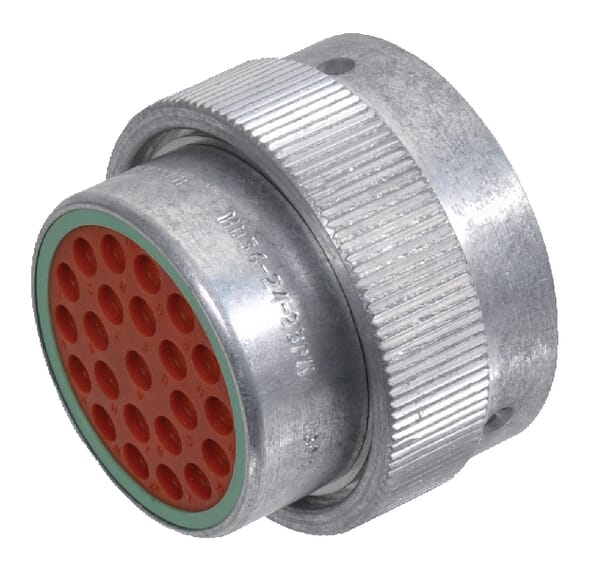

BPA000250378
