£5.38
excl. VAT
£6.46 incl. VAT
£6.46
incl. VAT
£5.38 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | On or in internal combustion engines, gearboxes and other heat-generating vehicle components, Lights, For AWG cables 16 to 24 or 1.00 mm² to 0.2 mm² |
|---|---|
| Benefits | Easy mounting |
| Connection 1, type - male/female | Female |
| Consists of | Individual components, Plug self-assembly |
| Content in sale unit | 1 pcs |
| Details | Modular design |
| DIN standard | 40050 |
| Long description | Deutsch - DTM suitable for on or around combustion engines, transmissions and other heat-producing vehicle parts. |
| Max working temperature | 125 °C |
| Min working temperature | -55 °C |
| Nominal voltage | 1500 V |
| Number of poles | 6 |
| Product details | Lighting, For cables AWG 16 to 24 or 1.00mm² to 0.2mm², Thermoplastic housing, Silicone seal, Integrated cable seal, Key type A grey, B black, C green or D brown, 7.5 amps at 125°C constant load, Pin size 20 |
| Properties | Thermoplastic housing, Silicone seal, Integrated cable seal, Encoding type A: grey, B: black, C: green, D: brown, 7.5 ampere at 125°C continuous use, Pin size: 20 |
| Pros | Modular design, Easy to assemble, Separate components, Assemble plugs yourself |
| Protection class IP | 69, 20, 6K9K |
| Series | DTM |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 10 g |
| Dimensions | 41 × 25 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000250499
TE Connectivity DEUTSCH Cable guide SH 24 DSWHDS241
£17.54 excl.
£21.05 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000250363
TE Connectivity DEUTSCH Chassis socket 9 P. Male J1939 DSHD1091939PE
£12.75 excl.
£15.30 incl.
Backorder available
Usually ships within 3–8 weeks

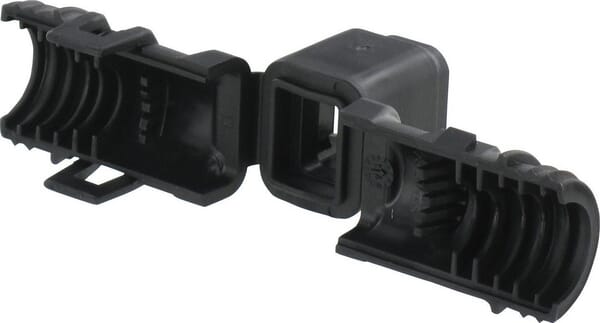

BPA000249800
TE Connectivity DEUTSCH Cable guide DT062S 180 DS10112550205
£2.13 excl.
£2.56 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000250284
TE Connectivity DEUTSCH Chassis socket 3 P. Male DT DSDT043PL012
£6.84 excl.
£8.21 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000249797
TE Connectivity DEUTSCH Cable guide DT048P 180 DS10112450805
£2.82 excl.
£3.38 incl.
In stock
Expected to ship on Tuesday 22 September

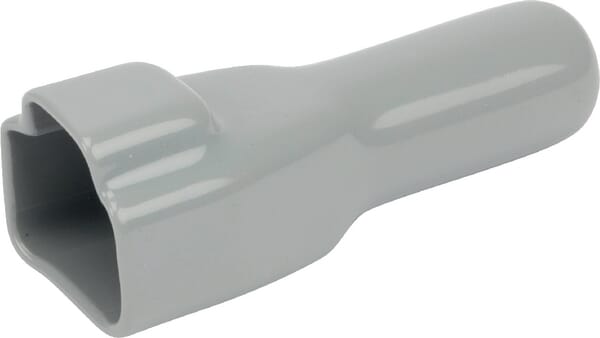

BPA000250321
