£1.12
excl. VAT
£1.34 incl. VAT
£1.34
incl. VAT
£1.12 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | On or in internal combustion engines, gearboxes and other heat-generating vehicle components, Lights, For AWG cables 16 to 24 or 1.00 mm² to 0.2 mm² |
|---|---|
| Benefits | Easy mounting |
| Connection 1, type - male/female | Male |
| Consists of | Individual components, Plug self-assembly |
| Content in sale unit | 1 pcs |
| Details | Modular design |
| DIN standard | 40050 |

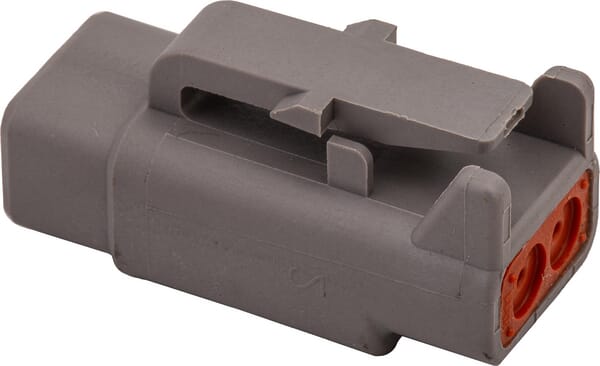

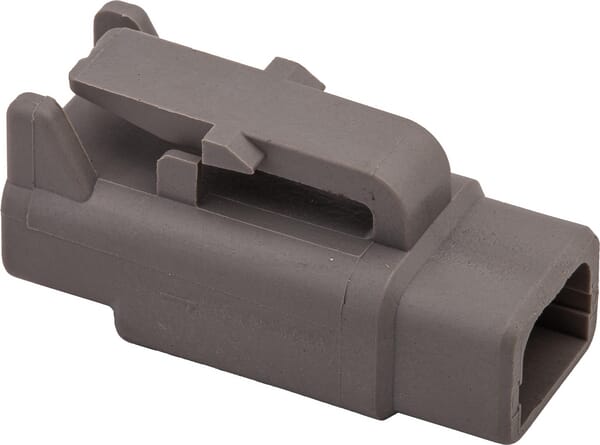

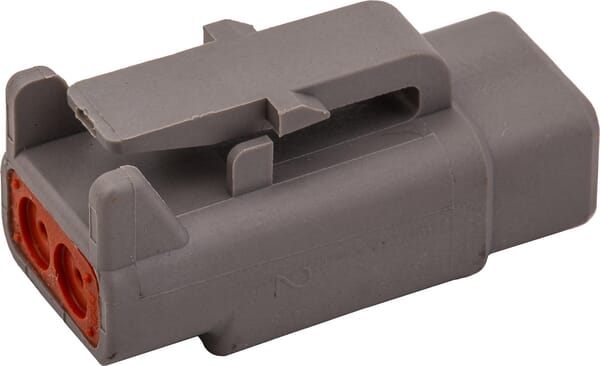

| Long description | Deutsch - DTM suitable for on or around combustion engines, transmissions and other heat-producing vehicle parts. |
| Max. cable cross section | 1 mm² |
| Max working temperature | 125 °C |
| Min. cable cross section | 0.2 mm² |
| Min working temperature | -55 °C |
| Nominal voltage | 1500 V |
| Number of poles | 2 |
| Product details | Lighting, For cables AWG 16 to 24 or 1.00mm² to 0.2mm², Thermoplastic housing, Silicone seal, Integrated cable seal, Key type A grey, B black, C green or D brown, 7.5 amps at 125°C constant load, Pin size 20 |
| Properties | Thermoplastic housing, Silicone seal, Integrated cable seal, Encoding type A: grey, B: black, C: green, D: brown, 7.5 ampere at 125°C continuous use, Pin size: 20 |
| Pros | Modular design, Easy to assemble, Separate components, Assemble plugs yourself |
| Protection class IP | 69, 6K9K |
| Unit | Each |
Logistics
| EAN | 8719607042529 |
|---|---|
| Unit of measure | EA |
| Weight | 2 g |
| Dimensions | 27 × 12 × 9 mm |
| Dangerous goods | No |
You might also like
BPA000249810
TE Connectivity DEUTSCH Cable guide DT046P 180 DS10112690605
£3.58 excl.
£4.30 incl.
In stock
Expected to ship on Friday 18 September
BPA000250415

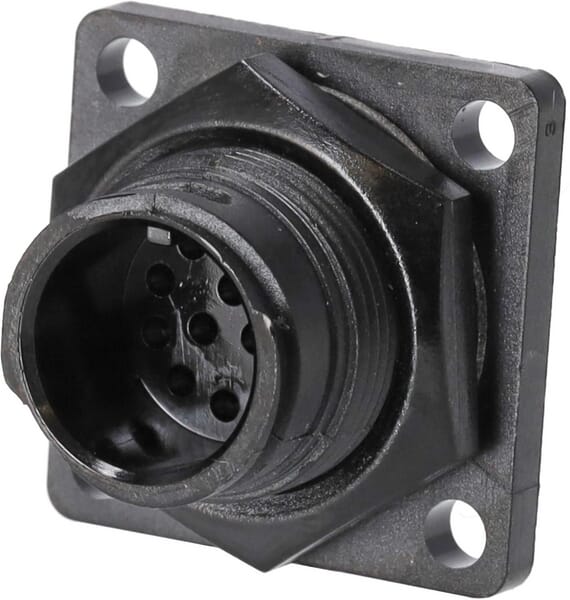

TE Connectivity DEUTSCH Chassis male IMC200 DSIMC242212X
£19.69 excl.
£23.63 incl.
In stock
Expected to ship on Friday 18 September
BPA000250290

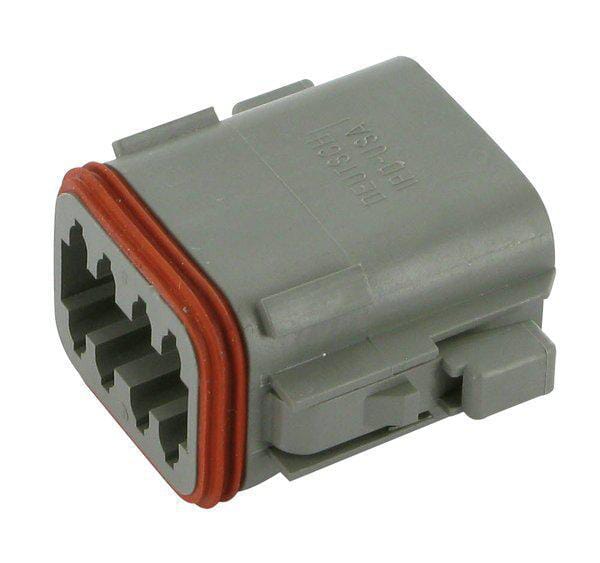

TE Connectivity DEUTSCH Chassis Socket 6P, DT DSDT046PL012
