£3.38
excl. VAT
£4.06 incl. VAT
£4.06
incl. VAT
£3.38 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.

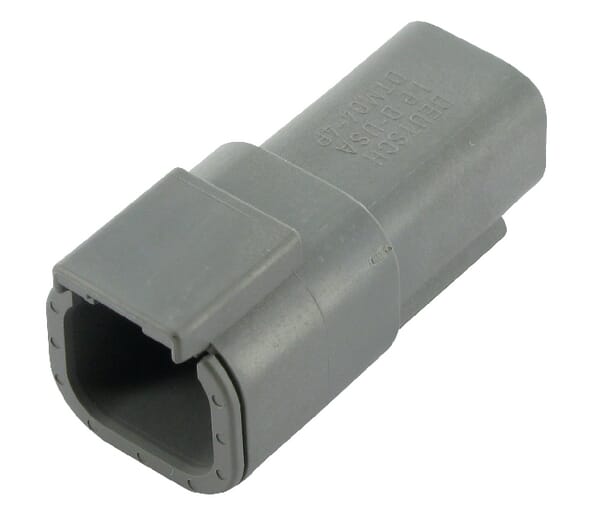

Product details
| Application range | On or in internal combustion engines, gearboxes and other heat-generating vehicle components, Lights, For AWG cables 16 to 24 or 1.00 mm² to 0.2 mm² |
|---|---|
| Benefits | Easy mounting |
| Connection 1, type - male/female | Female |
| Consists of | Individual components, Plug self-assembly |
| Content in sale unit | 1 pcs |
| Details | Modular design |
| DIN standard | 40050 |
| Long description | Deutsch - DTM suitable for on or around combustion engines, transmissions and other heat-producing vehicle parts. |
| Max working temperature | 125 °C |
| Min working temperature | -55 °C |
| Nominal voltage | 1500 V |
| Number of poles | 4 |
| Product details | Lighting, For cables AWG 16 to 24 or 1.00mm² to 0.2mm², Thermoplastic housing, Silicone seal, Integrated cable seal, Key type A grey, B black, C green or D brown, 7.5 amps at 125°C constant load, Pin size 20 |
| Properties | Thermoplastic housing, Silicone seal, Integrated cable seal, Encoding type A: grey, B: black, C: green, D: brown, 7.5 ampere at 125°C continuous use, Pin size: 20 |
| Pros | Modular design, Easy to assemble, Separate components, Assemble plugs yourself |
| Protection class IP | 69, 20, 6K9K |
| Series | DTM |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
AMH1060200122
TE Connectivity DEUTSCH Contact pin female, 0.2-0.5mm² Series DTM (10x), Deutsch AMH1060200122
£0.23 excl.
£0.28 incl.
DS04112402005
TE Connectivity DEUTSCH Tools Extract 20 DS04112402005
£5.90 excl.
£7.08 incl.
DS04132042005
TE Connectivity DEUTSCH Sealing plug DS20 DS04132042005
£0.14 excl.
£0.17 incl.
DS046020220141
TE Connectivity DEUTSCH Contact pin male DS20 male DS046020220141
£0.59 excl.
£0.71 incl.
DSDTM064S
TE Connectivity DEUTSCH Plug housing male, 4 poles Series DTM (1x), Deutsch DSDTM064S
£2.95 excl.
£3.54 incl.
DSHDT4800
TE Connectivity DEUTSCH Crimping Pliers Contact DSHDT4800
£700.18 excl.
£840.22 incl.
DSWM4P
TE Connectivity DEUTSCH Locking device female, 4 poles Series DTM, Deutsch DSWM4P
£0.40 excl.
£0.48 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 8 g |
| Dimensions | 45 × 20 × 19 mm |
| Dangerous goods | No |
You might also like
BPA000250389

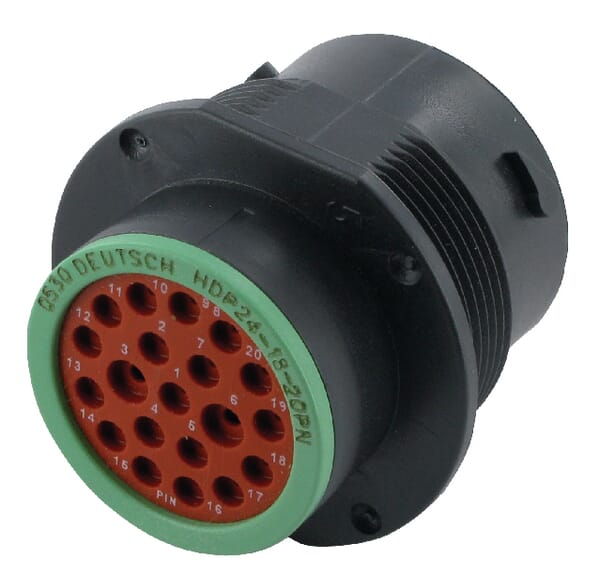

TE Connectivity DEUTSCH Chassis socket 20 P. Male HDP20 DSHDP241820PN
£57.97 excl.
£69.56 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000249777
TE Connectivity DEUTSCH Contact pin male DS16 female DS046220916141
£0.74 excl.
£0.89 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000249774

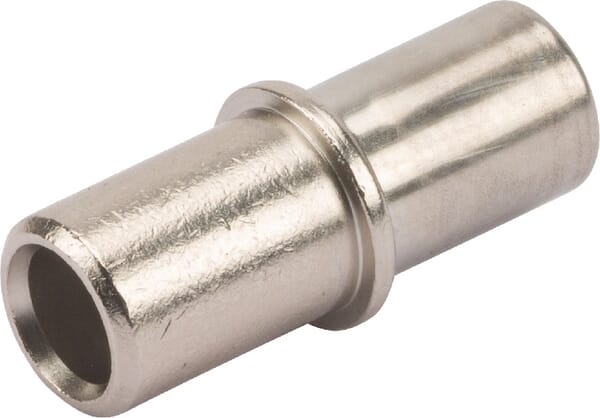

TE Connectivity DEUTSCH Contact pin male DS04 Female DS046220304141
£17.15 excl.
£20.58 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000250345

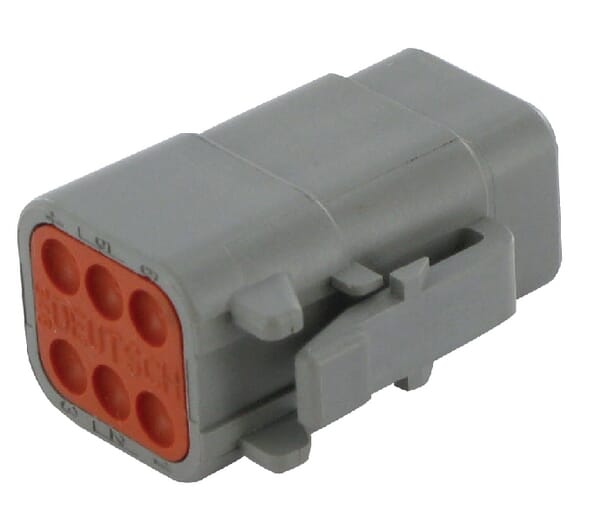

TE Connectivity DEUTSCH Plug housing male, 6 poles Series DTM (1x), Deutsch DSDTM066S
£2.66 excl.
£3.19 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000250427

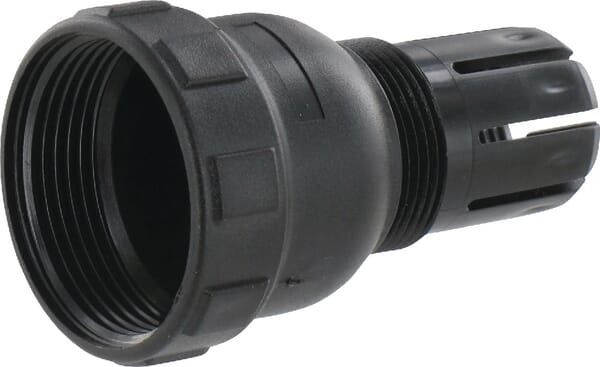

TE Connectivity DEUTSCH Cable guide HDP20 11 - 15mm DSM9022243
£17.97 excl.
£21.56 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000250369

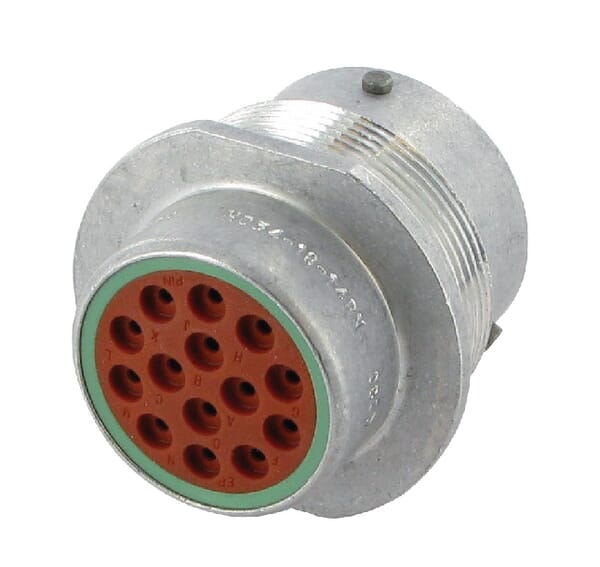

TE Connectivity DEUTSCH Chassis socket 14 P. Male HD30 SH1 DSHD341814PN
