£15.67
excl. VAT
£18.80 incl. VAT
£18.80
incl. VAT
£15.67 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | On or in internal combustion engines, gearboxes and other heat-generating vehicle components, Lights, For AWG cables 16 to 24 or 1.00 mm² to 0.2 mm² |
|---|---|
| Benefits | Easy mounting |
| Connection 1, type - male/female | Male |
| Consists of | Individual components, Plug self-assembly |
| Content in sale unit | 1 pcs |
| Details | Modular design |
| DIN standard | 40050 |
| Housing colour | Black |
| Long description | Deutsch - DTM suitable for on or around combustion engines, transmissions and other heat-producing vehicle parts. |
| Max working temperature | 125 °C |
| Min working temperature | -55 °C |
| Nominal voltage | 1500 V |
| Number of poles | 8 |
| Product details | Lighting, For cables AWG 16 to 24 or 1.00mm² to 0.2mm², Thermoplastic housing, Silicone seal, Integrated cable seal, Key type A grey, B black, C green or D brown, 7.5 amps at 125°C constant load, Pin size 20 |
| Properties | Thermoplastic housing, Silicone seal, Integrated cable seal, Encoding type A: grey, B: black, C: green, D: brown, 7.5 ampere at 125°C continuous use, Pin size: 20 |
| Pros | Modular design, Easy to assemble, Separate components, Assemble plugs yourself |
| Protection class IP | 69, 20, 6K9K |
| Series | DTM |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 12 g |
| Dimensions | 44 × 32 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000250502

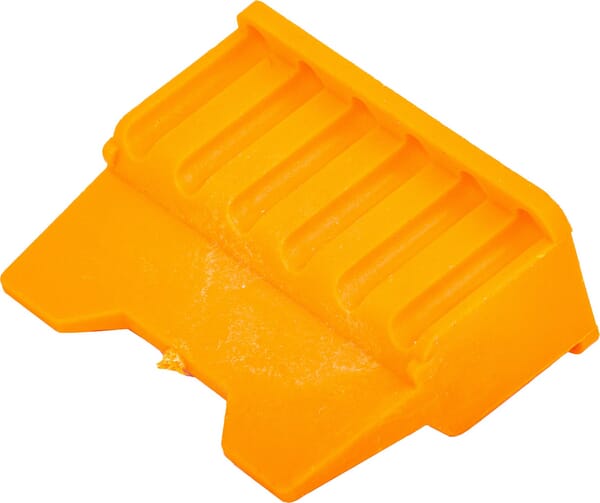

TE Connectivity DEUTSCH Locking device male, 12 poles Series DTM, Deutsch DSWM12S
£0.68 excl.
£0.82 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000250487

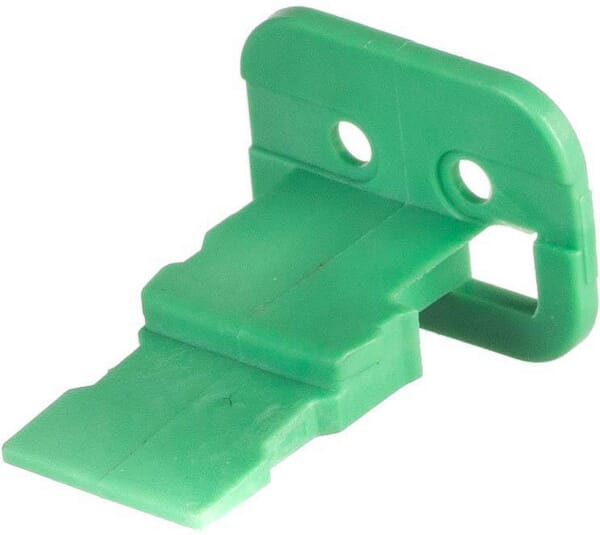

TE Connectivity DEUTSCH Wedge lock DSW2SC
£1.03 excl.
£1.24 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000250334

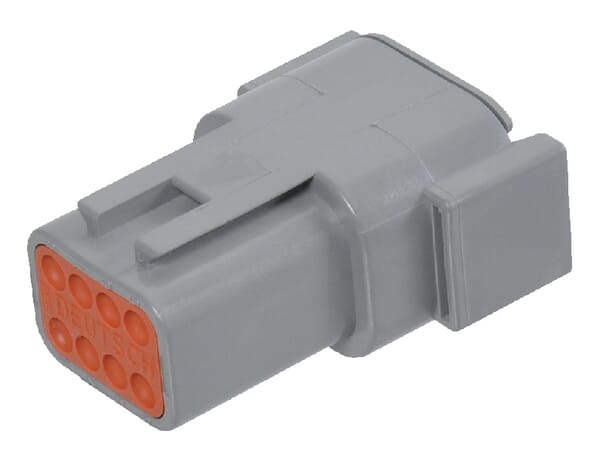

TE Connectivity DEUTSCH Plug housing male, grey, 8 poles Series DTM (1x), Deutsch DSDTM048PA
£5.25 excl.
£6.30 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000250269

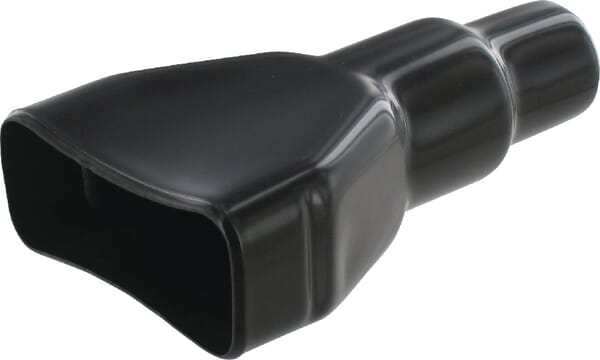

TE Connectivity DEUTSCH Cable guide DRC 50P DSDRC2650BT
£27.31 excl.
£32.77 incl.
In stock
Expected to ship on Tuesday 22 September

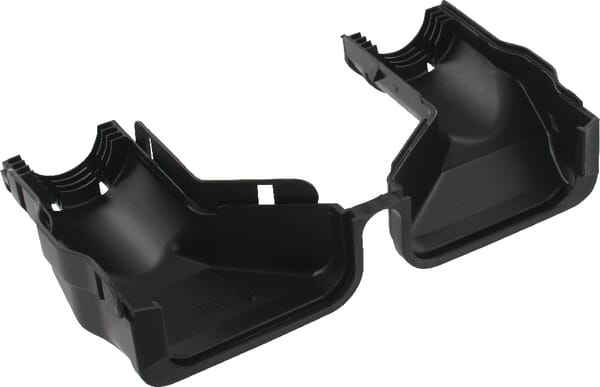

BPA000250453
TE Connectivity DEUTSCH Cable guide 41 P. female SRK DSSRKBSFLST001
£18.75 excl.
£22.50 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000250309

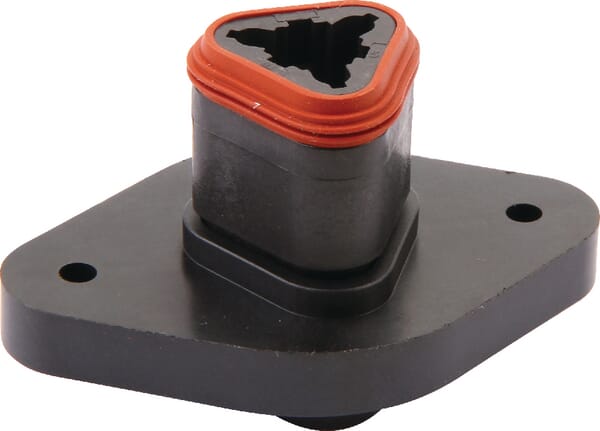

TE Connectivity DEUTSCH Chassis socket 3 P. Female DSDT063SCL08
