Product details
| Includes | Thermostat, Immersion protection tube type THV to be ordered separately |
|---|---|
| Insert length | 300 mm |

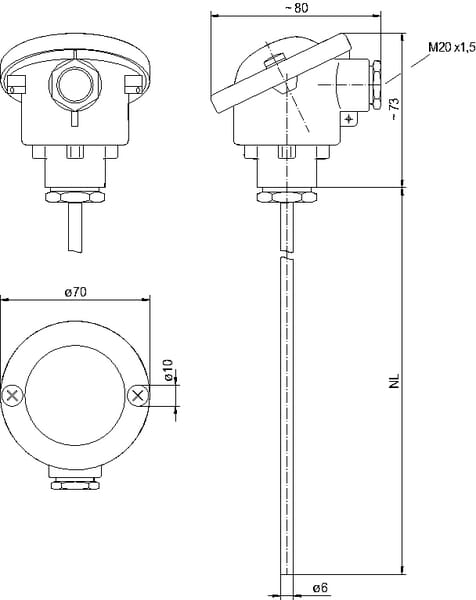

| Long description | Resistance thermometer TF54 with straight protective tube, connection head made of aluminium. To be used for measuring temperatures in liquid and gaseous media in pipes, tanks or reservoirs. |
| Number of NC contacts | 1 |
| Number of NO contacts | 1 |
| Product details | TF54 Pt100 150mm Temperature sensor passive, Aluminium connection head, Liquid temperature : -35°C to +180°C, Sensors / Output: PT100, Connection type: 2-wire connection, Housing: aluminium, ambient temperature -20 / +100ºC - 20x1.5, Electrical connection: 0.14 - 2.5mm², screw connection on ceramic base, Protection class: III (according to EN 60 730), Protection class: IP 54 (according to EN 60529), Amperage at 230V : 15A, Amperage at 400V : 10A, Amperage at 440V : 8A |
| Pros | Easy assembly with clips, Easy adjustment with screwdriver |
| Protection class IP | 55 |
| Unit | Each |
Logistics
| EAN | 4251325607481 |
|---|---|
| Unit of measure | EA |
| Weight | 318 g |
| Dimensions | 381 × 82 × 82 mm |
| Dangerous goods | No |
