Product details
| Bearing type | Roller |
|---|---|
| Body material | Steel |
| Dynamic load capacity | 350 kg |
| EN Standard | 12532 |
| Fitting type | Plate fitting |
| Max working temperature | 60 °C |
| Min working temperature | -30 °C |
| Mounting holes diameter | 11 mm |
| Mounting holes distance | 75-80 mm |
| Mounting holes distance - length side | 105-105 mm |

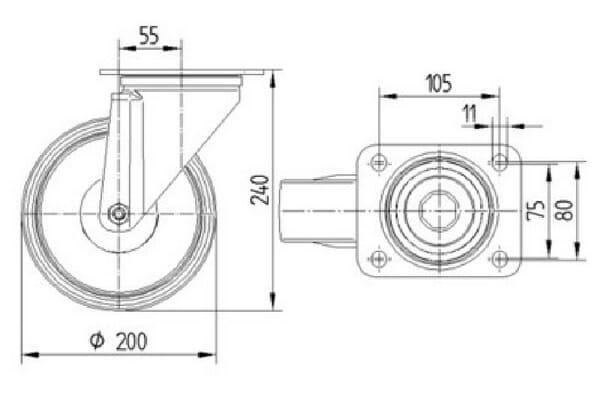

| Offset | 55 mm |

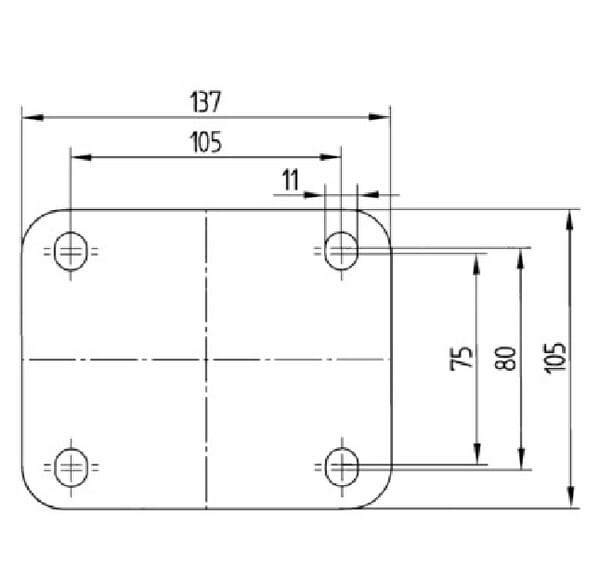

| Plate length | 137 mm |
| Plate width | 105 mm |

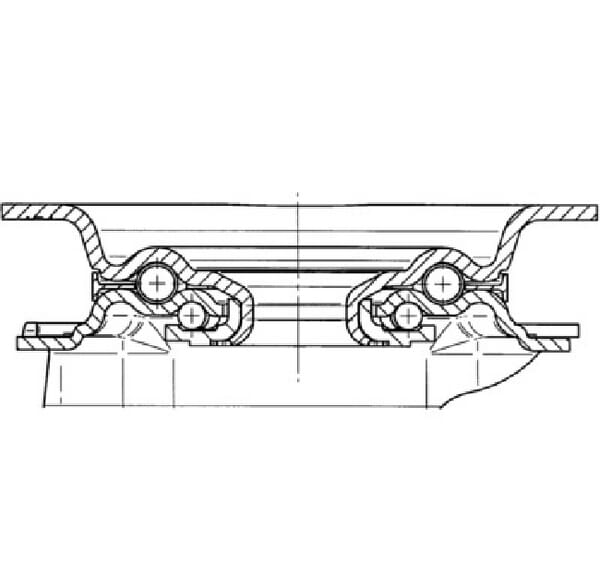

| Technical info | Swivel castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, dustguard, plate fitting. Wheel centre made of Polyamide, Tread: Polyurethane, roller bearing |
| Total height | 240 mm |
| Unit | Each |
| Weight | 2.368 kg |
| Wheel diameter | 200 mm |
| Wheel material | Polyurethane |
| Wheels type | Swivel wheel |
| Wheel width | 46 mm |
| With break | No |
Logistics
| EAN | 4031582304305 |
|---|---|
| Unit of measure | EA |
| Weight | 2516 g |
| Dimensions | 245 × 200 × 140 mm |
| Dangerous goods | No |
You might also like
BPA000073097
Tente Caster wheel swivel, rubber wheel: diameter 150x32mm, single bolt hole, Load: 100kg, 2470PJP150P3011
£31.34 excl.
£37.61 incl.
In stock
Expected to ship on Friday 18 September
BPA000091958

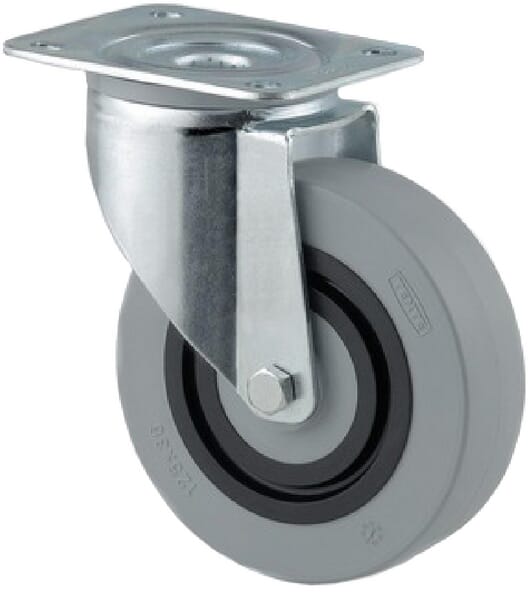

Tente Caster wheel swivel, polyamide wheel: diameter 125x36mm, plate fitting: 105x85mm Load: 200kg, 3470HUR125P62
