Product details
| Bearing type | Ball |
|---|---|
| Body material | Steel |
| Dynamic load capacity | 800 kg |
| EN Standard | 12532 |
| Fitting type | Plate fitting |
| Mounting holes diameter | 11 mm |
| Mounting holes distance | 75-80 mm |
| Mounting holes distance - length side | 105-105 mm |
| Offset | 55 mm |

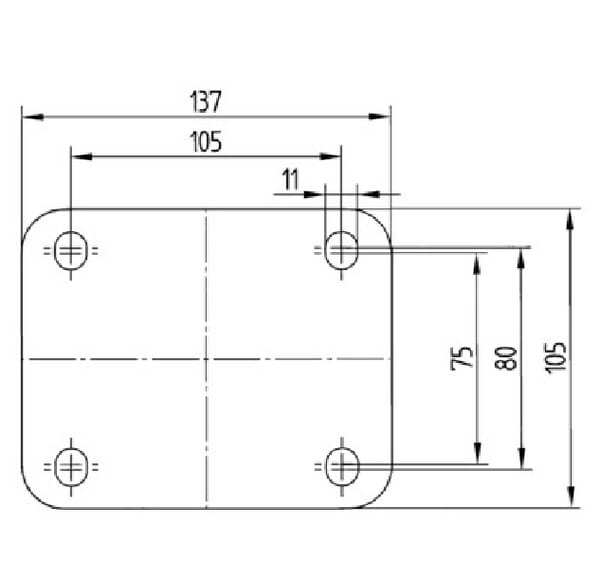

| Plate length | 137 mm |
| Plate width | 105 mm |
| Technical info | Swivel castor with total lock, tail end of castor, housing made of very heavy pressed steel, reinforced, bright zinc plated, blue passivated, sealed swivel double ball bearing, reinforced and heat-treated ball covers, riveted king pin, dust ring with integrated grease nipple, wheel axle with nut, plate fitting. Wheel centre made of Aluminium, Tread: Polyurethane, casted, precision ball bearing |
| Total height | 290 mm |
| Unit | Each |
| Weight | 5.059 kg |
| Wheel diameter | 250 mm |
| Wheel material | Polyurethane |
| Wheels type | Swivel wheel |
| Wheel width | 55 mm |
| With break | Yes |
Logistics
| EAN | 4031582050592 |
|---|---|
| Unit of measure | EA |
| Weight | 4441 g |
| Dimensions | 290 × 250 × 135 mm |
| Dangerous goods | No |
You might also like

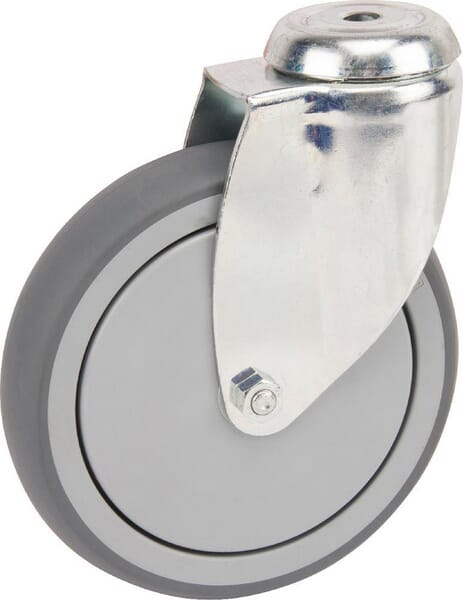

BPA000073097
Tente Caster wheel swivel, rubber wheel: diameter 150x32mm, single bolt hole, Load: 100kg, 2470PJP150P3011
£31.34 excl.
£37.61 incl.
In stock
Expected to ship on Friday 18 September
BPA000341129
Tente Wheel 65 mm POO0653012345
£3.57 excl.
£4.28 incl.
In stock
Expected to ship on Monday 21 September
BPA000190598
Tente Caster wheel swivel, polyurethane wheel: diameter 80x32mm, with brake, stainless steel single bolt hole Load: 100kg, 8477UAD080P3013
£54.73 excl.
£65.68 incl.
In stock
Expected to ship on Friday 18 September
BPA000190612
Tente Caster wheel swivel, polyamide wheel: diameter 80x34mm, with brake, stainless steel plate fitting: 105x85mm Load: 200kg, 8477UOO080P62
£46.04 excl.
£55.25 incl.
In stock
Expected to ship on Friday 18 September
BPA000048814
Tente Caster wheel swivel, polypropylene wheel: diameter 38x16mm, plate fitting: 46x38mm Load: 25kg, 1430POI038P604638
£5.35 excl.
£6.42 incl.
In stock
Expected to ship on Friday 18 September

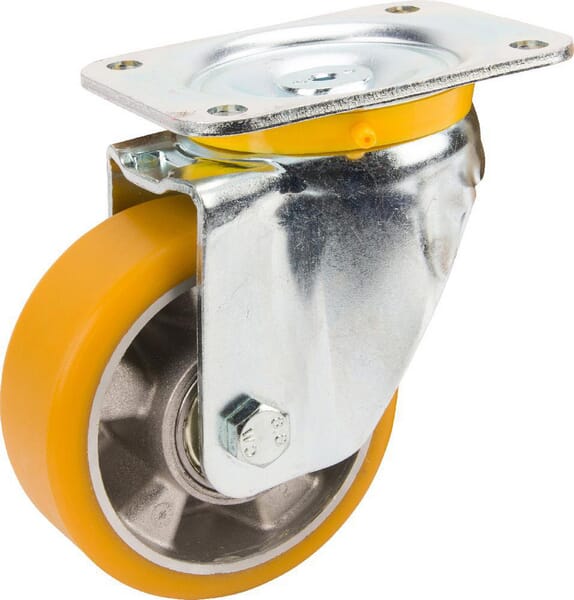

BPA000122708
