Product details
| Bearing type | Roller |
|---|---|
| Body material | Stainless steel |
| Dynamic load capacity | 100 kg |
| EN Standard | 12532 |
| Fitting type | Plate fitting |
| Max working temperature | 60 °C |
| Min working temperature | -30 °C |

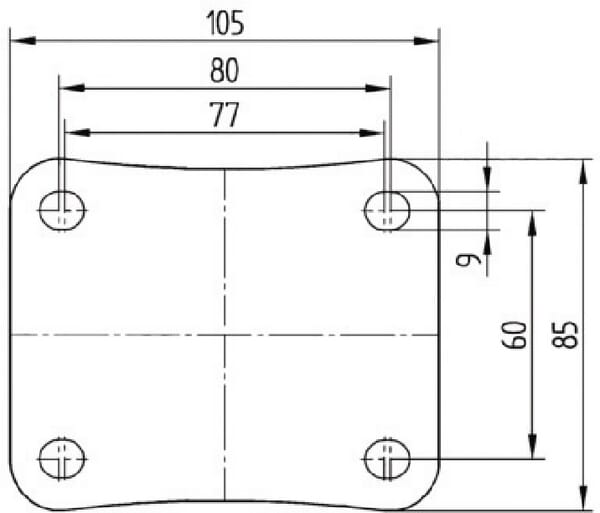

| Mounting holes diameter | 9 mm |
| Mounting holes distance | 60-60 mm |
| Mounting holes distance - length side | 77-80 mm |
| Offset | 44.5 mm |
| Plate length | 105 mm |
| Plate width | 85 mm |

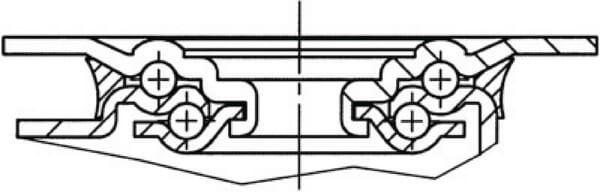

| Technical info | Swivel castor with total lock, tail end of castor, double ball bearing swivel head, wheel axle with nut, plate fitting. Wheel centre made of Polyamide, Tread: Polyurethane, purple, roller bearing, stainless |
| Total height | 108 mm |
| Unit | Each |
| Weight | 0.864 kg |
| Wheel diameter | 80 mm |
| Wheel material | Polyurethane |
| Wheels type | Swivel wheel |
| Wheel width | 32 mm |
| With break | Yes |
Logistics
| EAN | 40315823278544031582396256 |
|---|---|
| Unit of measure | EA |
| Weight | 813 g |
| Dimensions | 170 × 110 × 85 mm |
| Dangerous goods | No |
