Product details
| Bearing type | Ball |
|---|---|
| Body material | Steel |
| Dynamic load capacity | 200 kg |
| EN Standard | 12532 |
| Fitting type | Plate fitting |
| Max working temperature | 85 °C |
| Min working temperature | -20 °C |

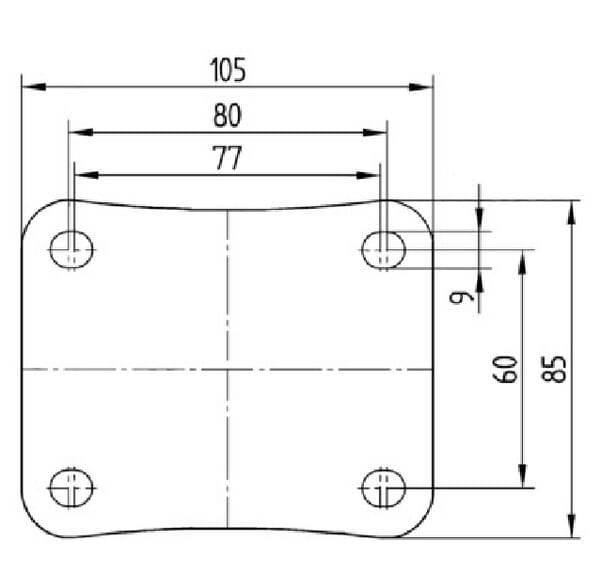

| Mounting holes diameter | 9 mm |
| Mounting holes distance | 60-60 mm |
| Mounting holes distance - length side | 77-80 mm |
| Offset | 41 mm |
| Plate length | 105 mm |
| Plate width | 85 mm |

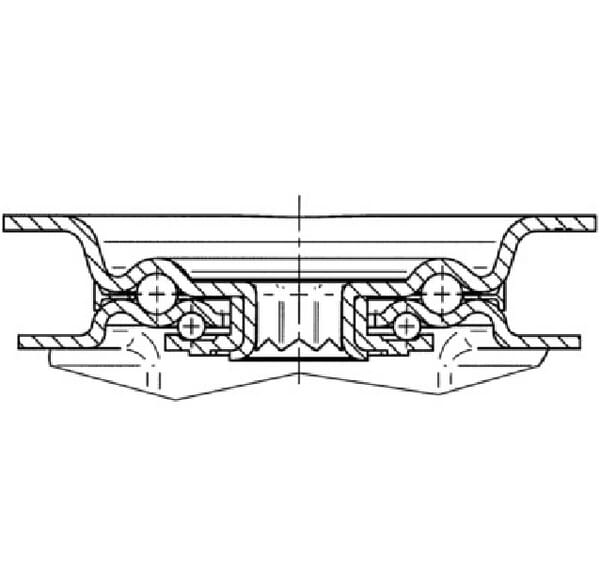

| Technical info | Swivel castor with total lock, tail end of castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, dustguard, plate fitting. Wheel centre made of Aluminium, Tread: black elastic-tyre, vulcanized, precision ball bearing |

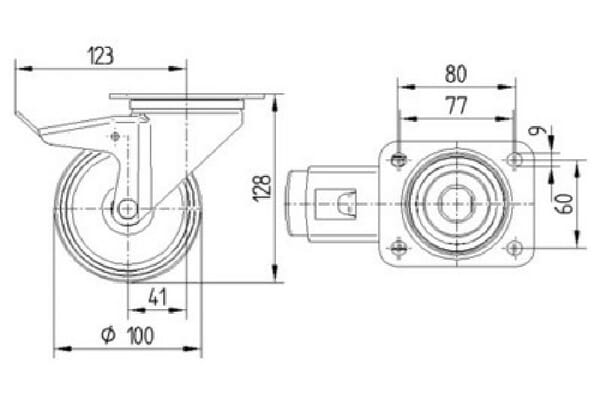

| Total height | 128 mm |
| Unit | Each |
| Weight | 1.24 kg |
| Wheel diameter | 100 mm |
| Wheel material | Rubber |
| Wheels type | Swivel wheel |
| Wheel width | 40 mm |
| With break | Yes |
Logistics
| EAN | 4031582305173 |
|---|---|
| Unit of measure | EA |
| Weight | 1174 g |
| Dimensions | 169 × 129 × 80 mm |
| Dangerous goods | No |
