Product details
| Bearing type | Ball |
|---|---|
| Body material | Steel |
| Dynamic load capacity | 100 kg |
| EN Standard | 12530 |
| Fitting type | Plate fitting |
| Max working temperature | 60 °C |
| Min working temperature | -20 °C |

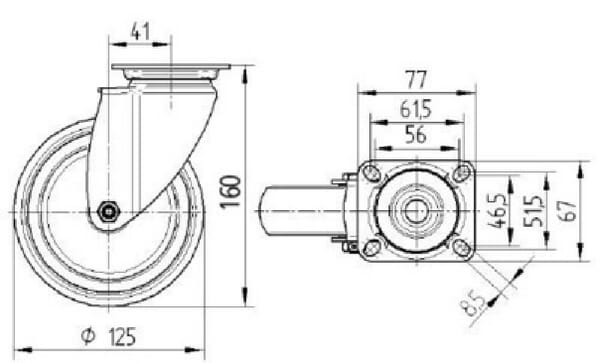

| Mounting holes diameter | 8.5 mm |
| Mounting holes distance | 46.5-51.5 mm |
| Mounting holes distance - length side | 56-61.5 mm |
| Offset | 41 mm |
| Plate length | 77 mm |
| Plate width | 67 mm |
| Technical info | Swivel castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, plate fitting. Wheel centre made of Polypropylene, Tread: TENTEprene (thermoplastic rubber), grey non-marking, precision ball bearing , with threadguards |
| Total height | 160 mm |
| Unit | Each |
| Weight | 0.75 kg |
| Wheel diameter | 125 mm |
| Wheel material | Rubber |
| Wheels type | Swivel wheel |
| Wheel width | 32 mm |
| With break | No |
Logistics
| EAN | 4031582010503 |
|---|---|
| Unit of measure | EA |
| Weight | 732 g |
| Dimensions | 135 × 65 × 155 mm |
| Dangerous goods | No |
