Product details
| Bearing type | Roller |
|---|---|
| Body material | Steel |
| Dynamic load capacity | 205 kg |
| EN Standard | 12532 |
| Fitting type | Plate fitting |
| Max working temperature | 60 °C |
| Min working temperature | -20 °C |

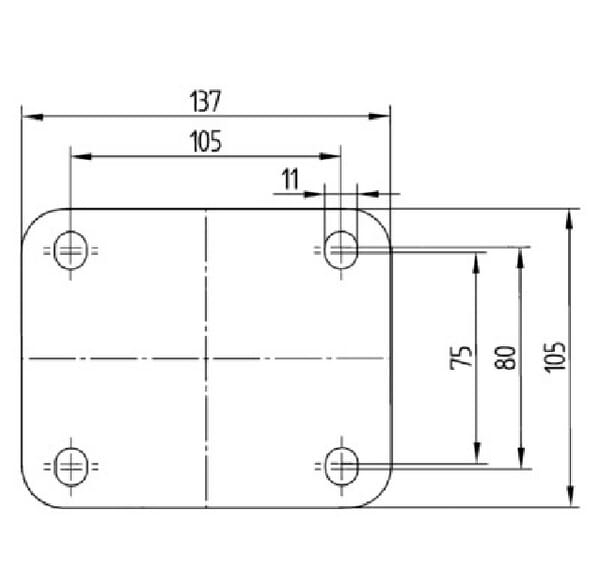

| Mounting holes diameter | 11 mm |
| Mounting holes distance | 75-80 mm |
| Mounting holes distance - length side | 105-105 mm |
| Offset | 55 mm |
| Plate length | 137 mm |
| Plate width | 105 mm |

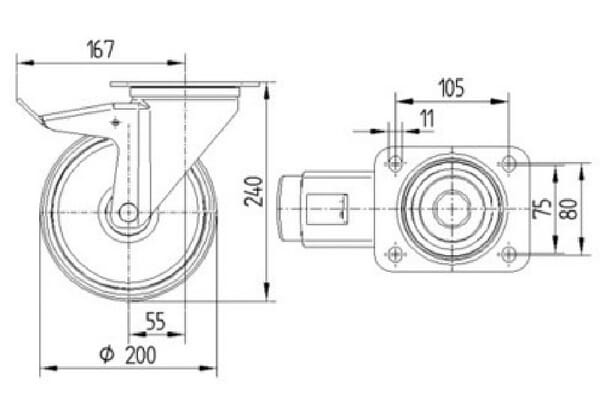

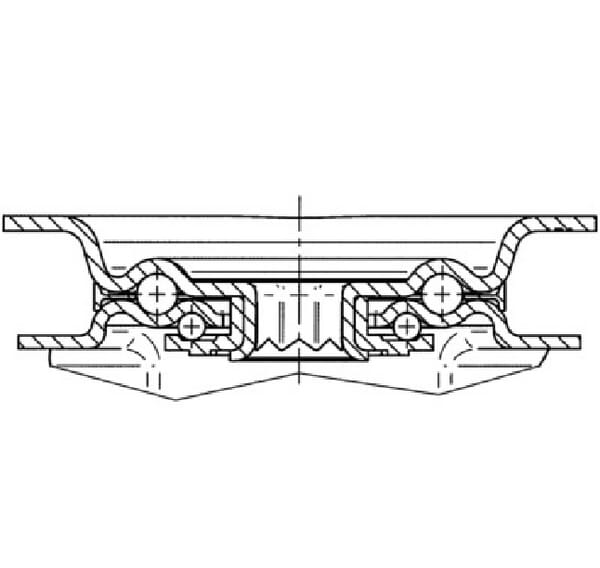

| Technical info | Swivel castor with total lock, tail end of castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, dustguard, plate fitting. Wheel centre made of pressed steel, Tread: solid rubber, black, roller bearing |
| Total height | 240 mm |
| Unit | Each |
| Weight | 3.575 kg |
| Wheel diameter | 200 mm |
| Wheel material | Rubber |
| Wheels type | Swivel wheel |
| Wheel width | 50 mm |
| With break | Yes |
Logistics
| EAN | 4031582050257 |
|---|---|
| Unit of measure | EA |
| Weight | 3554 g |
| Dimensions | 250 × 195 × 105 mm |
| Dangerous goods | No |
