£37.26
excl. VAT
£44.71 incl. VAT
£44.71
incl. VAT
£37.26 excl. VAT
In stock
Expected to ship on Monday 21 September

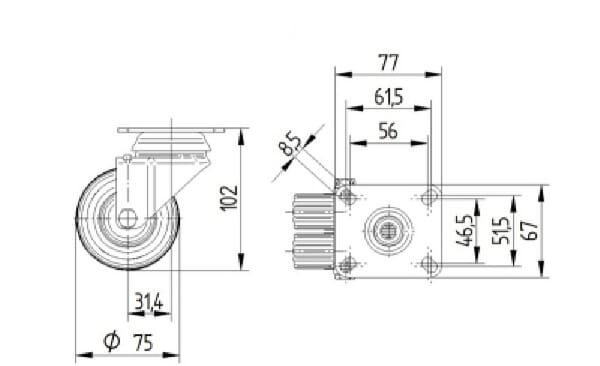

Product details
| Bearing type | Ball |
|---|---|
| Body material | Steel |
| Dynamic load capacity | 100 kg |
| EN Standard | 12530 |
| Fitting type | Single bolt hole |
| Max working temperature | 60 °C |
| Min working temperature | -20 °C |

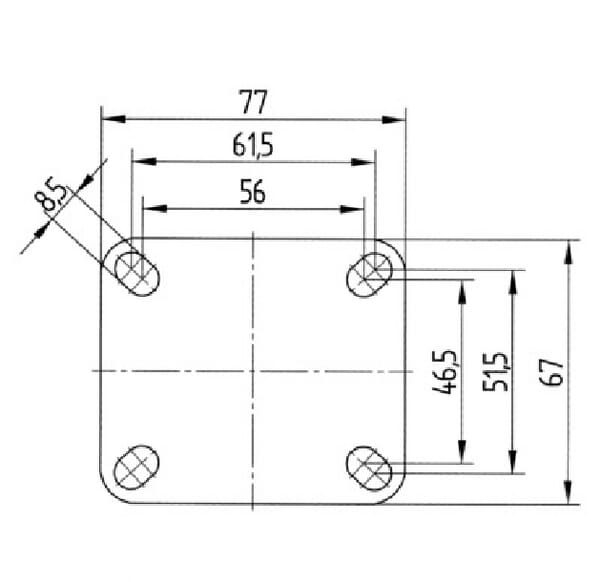

| Mounting holes diameter | 8.5 mm |
| Mounting holes distance | 46.5-51.5 mm |
| Mounting holes distance - length side | 56-61.5 mm |
| Offset | 31.4 mm |
| Plate length | 77 mm |
| Plate width | 67 mm |

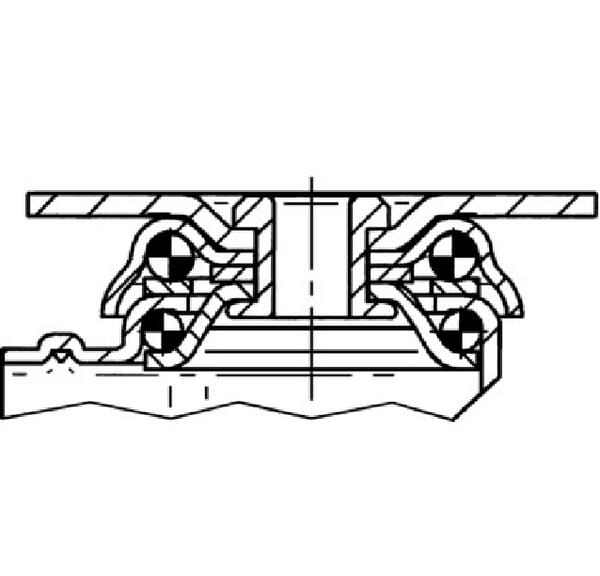

| Technical info | Swivel castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, plate fitting. Wheel centre made of Polypropylene, Tread: TENTEprene (thermoplastic rubber), grey non-marking, precision ball bearing , with threadguards |
| Total height | 102 mm |
| Unit | Each |
| Weight | 0.648 kg |
| Wheel diameter | 75 mm |
| Wheel material | Rubber |
| Wheels type | Swivel wheel |
| Wheel width | 25 mm |
| With break | No |
Logistics
| EAN | 4031582302738 |
|---|---|
| Unit of measure | EA |
| Weight | 627 g |
| Dimensions | 103 × 78 × 86 mm |
| Dangerous goods | No |
You might also like
BPA000091968
Tente Caster wheel swivel, rubber wheel: diameter 200x50mm, plate fitting: 137x105mm Load: 205kg, 3470PIR200P63
£63.96 excl.
£76.75 incl.
In stock
Expected to ship on Monday 21 September
BPA000073214

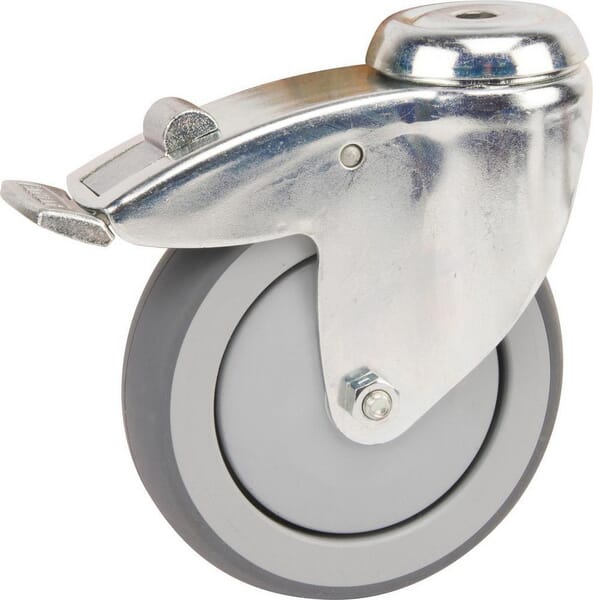

Tente Caster wheel swivel, rubber wheel: diameter 125x32mm, with brake, single bolt hole, Load: 100kg, 2477PJP125P3011
£27.23 excl.
£32.68 incl.
In stock
Expected to ship on Monday 21 September
BPA000190600
Tente Caster wheel swivel, polyurethane wheel: diameter 100x32mm, with brake, stainless steel single bolt hole Load: 150kg, 8477UAD100P3013
£56.60 excl.
£67.92 incl.
In stock
Expected to ship on Monday 21 September
BPA000092146

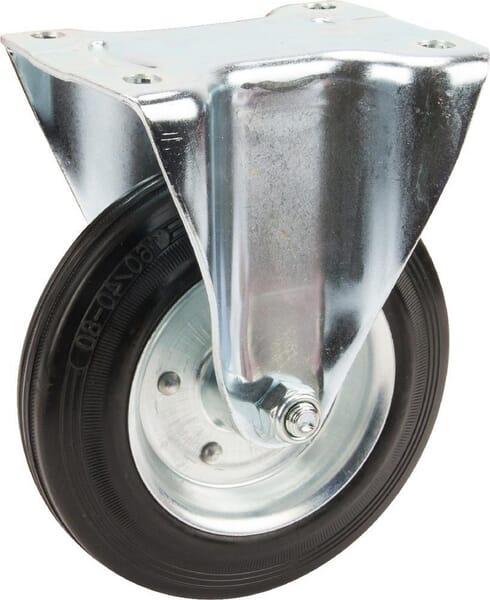

Tente Caster wheel rigid, rubber wheel: diameter 160x23mm, plate fitting: 137x115mm Load: 135kg, 3478DVR160P63
