About this product

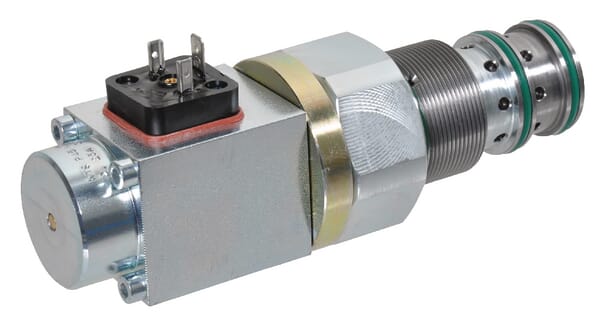

A Till Hydraulik SR102020012 3-way flow control valve designed for hydraulic motor speed regulation, supplied as a single unit. The valve handles a maximum flow rate of 80 l/min with a maximum regulated flow of 20 l/min and operates at a maximum working pressure of 210 bar. The valve functions across a temperature range of −20 °C to +80 °C and is available with manual control or electro-proportional control operating at 12 V DC for use with PWM controllers. The valve is configured for inline mounting and enables precision adjustment, with calibration available in steps of 10 l/min. All connections can be pressurised. The valve weighs approximately 1.96 kg and measures 184 mm length × 93 mm width × 71 mm height.
Product details
| Long description | Flow control valves for hydraulic motor speed control |
|---|---|
| Max. flow rate | 80 l/min |
| Max medium temperature | 80 °C |
| Max. regulated flow | 20 l/min |
| Max working pressure | 210 BAR |
| Min medium temperature | -20 °C |

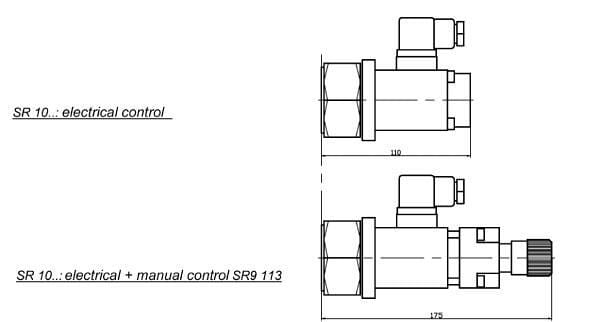

| Product details | Speed control for hydraulic motors, For inline mounting, With manual control or electro-proportional control, Run with a PWM controller, Precision adjustment possible, Can be calibrated in steps of 10L/min within the basic settings, The housing, flow control valve and manual emergency control can be ordered separately |
| Pros | Robust design, Stable operation, All connections may be pressurised |
| Unit | Each |
| Voltage (DC) | 12 V |
| Weight | 2 kg |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1956 g |
| Dimensions | 184 × 93 × 71 mm |
| Dangerous goods | No |
