Product details

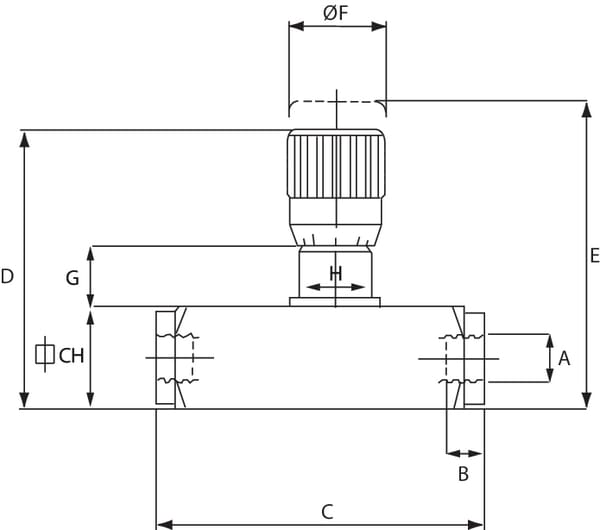

| Connection 2, thread diameter | 1/2 Inch |
|---|---|
| Connection 2, thread length | 18 mm |
| Connection thread diameter | M30 |
| Connection thread length | 15.5 mm |
| Connection thread pitch | 1.50 mm |
| DTotal height | 122 mm |
| Max. flow rate | 50 l/min |
| Max working pressure | 250 BAR |
| Mounting possibility | Suited for in-line mounting |
| Sealing material | Viton |

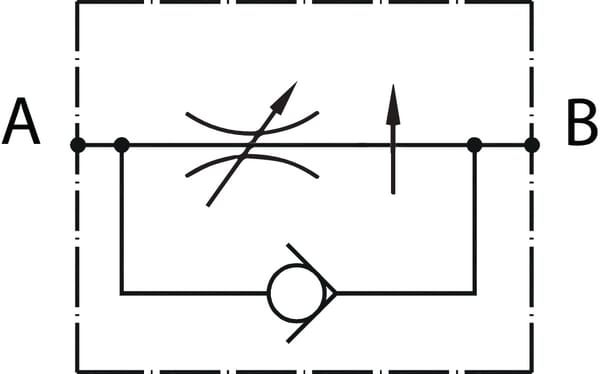

| Technical info | These valves are fitted with a graduated turning knob, which is standard. Independent of the load, the pressure compensator provides a constant volume flow. |
| Total width (diameter) | 137 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1910 g |
| Dimensions | 201 × 139 × 53 mm |
| Dangerous goods | No |
