Product details

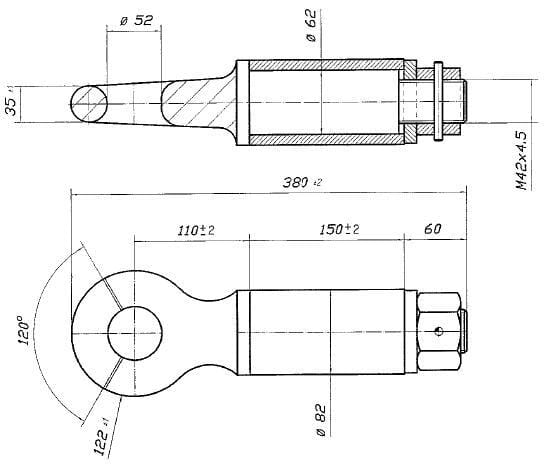

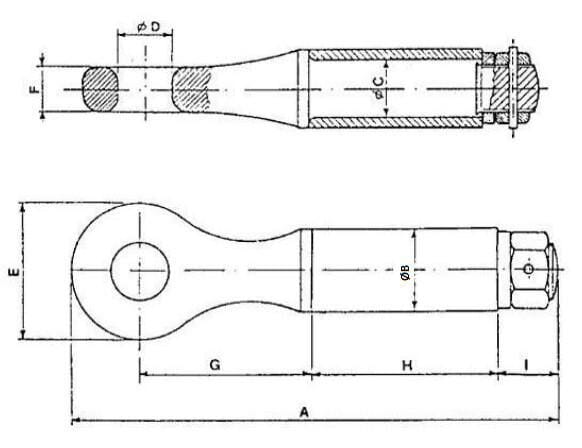

| ATotal length | 380 mm |
|---|---|
| BShaft width (diameter) | 82 mm |
| CShaft inside width (diameter) | 62 mm |
| DTowing eye inside diameter (main hole) | 52 mm |
| ETotal width | 122 mm |
| Long description | Rotatable towing eyes 2 - 30 tonnes maximum 25km/h |
| Max. pulling load | 17000 kg |
| Max. vertical load | 3000 kg |
| Properties | Swivelling, Maximum 25 km/h |
| Thread diameter | M42 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 12000 g |
| Dimensions | 383 × 120 × 81 mm |
| Dangerous goods | No |
