Product details

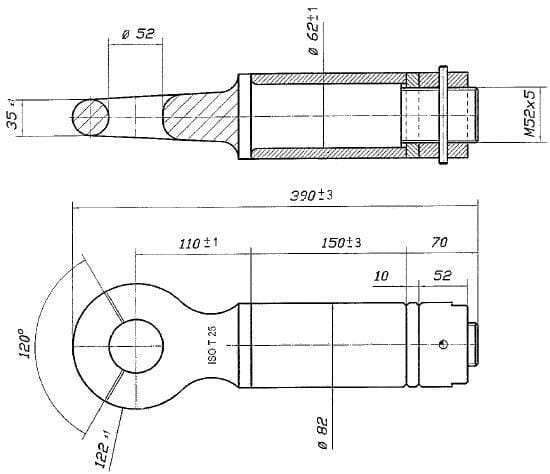

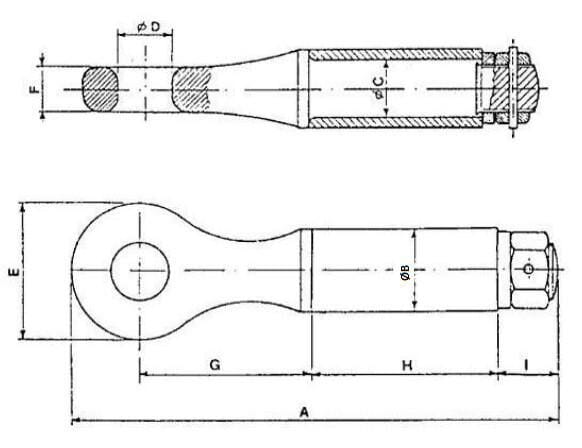

| ATotal length | 390 mm |
|---|---|
| BShaft width (diameter) | 82 mm |
| CShaft inside width (diameter) | 62 mm |
| DTowing eye inside diameter (main hole) | 52 mm |
| ETotal width | 122 mm |
| Long description | Rotatable towing eyes 2 - 30 tonnes maximum 25km/h |
| Max. pulling load | 25000 kg |
| Max. vertical load | 3500 kg |
| Properties | Swivelling, Maximum 25 km/h |
| Thread diameter | M52 |
| Unit | Each |
Logistics
| EAN | 8716106826971 |
|---|---|
| Unit of measure | EA |
| Weight | 13000 g |
| Dimensions | 401 × 129 × 80 mm |
| Dangerous goods | No |
