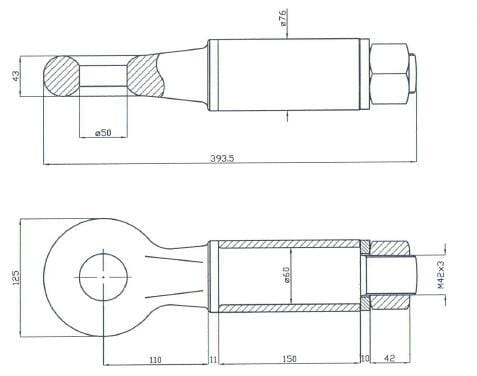

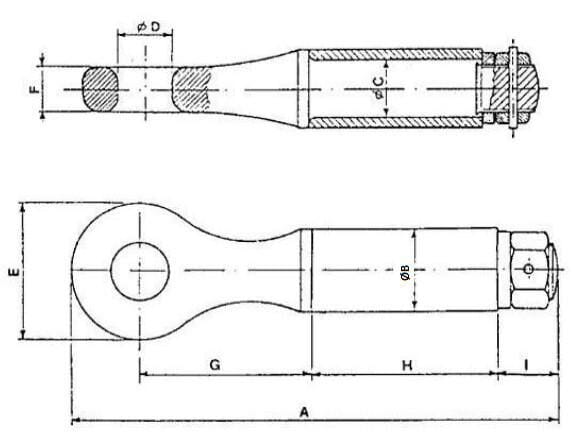

Product details
| ATotal length | 395 mm |
|---|---|
| Bearing length | 150 mm |
| BShaft width (diameter) | 76 mm |
| CShaft inside width (diameter) | 60 mm |
| DTowing eye inside diameter (main hole) | 50 mm |
| ETotal width | 125 mm |
| HWorking length | 150 mm |
| Long description | Rotatable towing eyes 2 - 30 tonnes maximum 25km/h |
| Max. pulling load | 30000 kg |
| Max. vertical load | 3500 kg |
| Properties | Swivelling, Maximum 25 km/h |
| Thread diameter | M42 |
| Unit | Each |
Logistics
| EAN | 8716106983278 |
|---|---|
| Unit of measure | EA |
| Weight | 11498 g |
| Dimensions | 395 × 121 × 80 mm |
| Dangerous goods | No |
