Product details

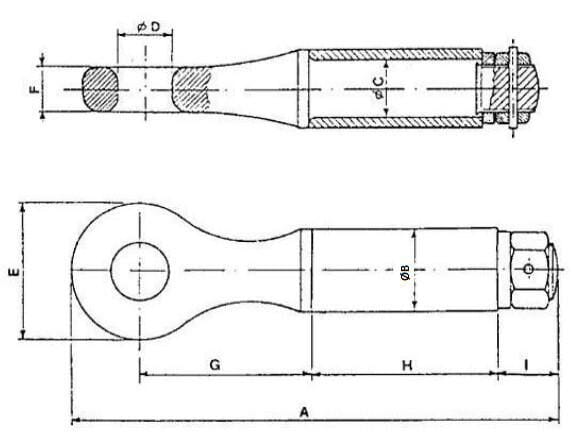

| ATotal length | 330 mm |
|---|---|
| Autorisation number | ISO 5692/3 |
| Bearing length | 150 mm |
| BShaft width (diameter) | 60 mm |
| CShaft inside width (diameter) | 48 mm |
| DTowing eye inside diameter (main hole) | 52 mm |
| ETotal width | 128 mm |
| HWorking length | 110 mm |
| IThread length | 43 mm |

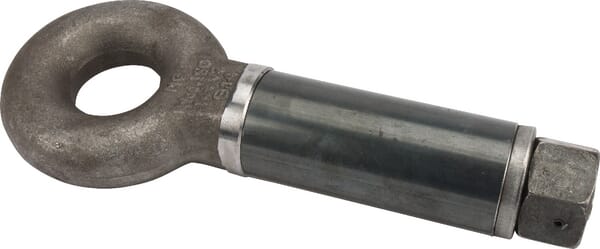

| Long description | Rotatable towing eyes with new European approvals |
| Max. pulling load | 14000 kg |
| Max. vertical load | 1500 kg |
| Thread diameter | M40 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
