About this product

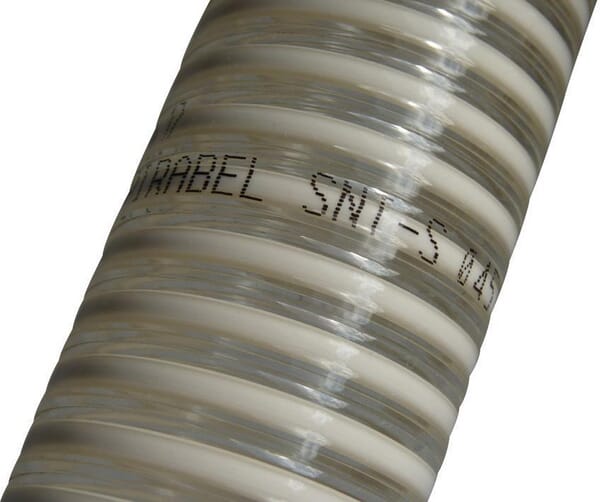

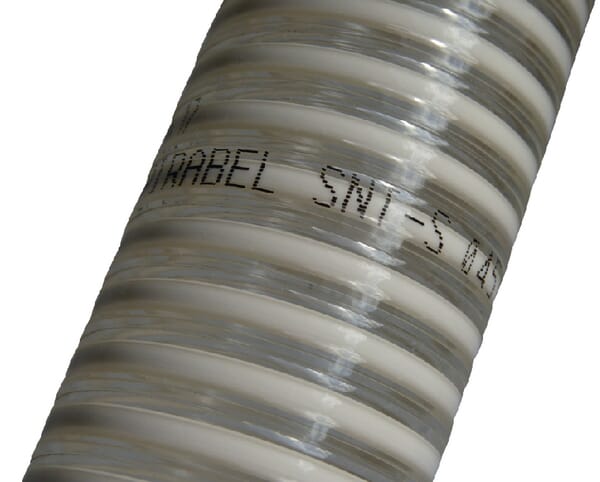

A 25 m length of Tricoflex Spirabel® SNTS PVC spiral hose with 25 mm inner diameter and 30.4 mm outer diameter, sold by the metre (minimum order 25 m). The hose features a hard PVC coil construction with single-ply PVC reinforcement and smooth transparent lining throughout. It is rated to 7 bar maximum working pressure, 21 bar burst pressure, and 0.8 bar maximum vacuum, with a minimum bend radius of 75 mm. The hose operates across a temperature range of −15 °C to 60 °C and has a wall thickness of 2.7 mm. It is approved for supplying water, foodstuffs, beverages, and alcoholic liquids, making it suitable for use in beverage and food industry applications as well as agriculture. The transparent construction enables visual inspection of contents. Do not use for food-grade lubricants or hydrocarbons. Each metre weighs approximately 0.3 kg. The product carries the EAN 3506111671407.
Product details
| Application range | For supplying foodstuffs, beverages, alcoholic liquids, water, milk, In beverage and food industry, agriculture |
|---|---|
| Bend radius | 75 mm |
| Benefits | Good dimensional stability, No deposits, Allows good visual inspection |
| Burst pressure | 21 BAR |
| Colour inside | Transparent |
| Colour outside | Transparent |
| Details | Hard PVC coil, Smooth hose lining, Transparent |
| Hose inside diameter | 25 mm |
| Hose outside diameter | 30.4 mm |
| Length | 25 m |
| Material inside | PVC |
| Material outside | PVC |
| Max vacuum | 0.8 BAR |
| Max working pressure | 7 BAR |
| Max working temperature | 60 °C |
| Medium | Water |
| Min working temperature | -15 °C |
| Properties | Lightweight, highly flexible hose |
| Qty. Rounding | 25 |
| Reinforcement material | PVC |
| Reinforcement number of plies | 1 |
| Reinforcement type | Coil |
| Technical info | Do not use for food-grade lubricants and hydrocarbons |
| Type | Water hose |
| Unit | Metre |
| Wall thickness | 2.7 mm |
| Weight | 0.3 kg/m |
Logistics
| EAN | 3506111671407 |
|---|---|
| Unit of measure | MTR |
| Weight | 300 g |
| Dimensions | 670 × 650 × 6 mm |
| Dangerous goods | No |
