£141.18
excl. VAT
£169.42 incl. VAT
£169.42
incl. VAT
£141.18 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Return stops, Switching mechanisms |
|---|---|
| Basic radial load dynamic | 7000 N |
| Basic radial load static | 3700 N |
| Benefits | Prevents damage |
| Details | Freewheeling: Clutch disengages if the driven part rotates faster than the driving part. |
| Drag torque | 0.05 N·m |
| Inside diameter | 17 mm |
| Inside diameter of outer ring | 36.45 mm |

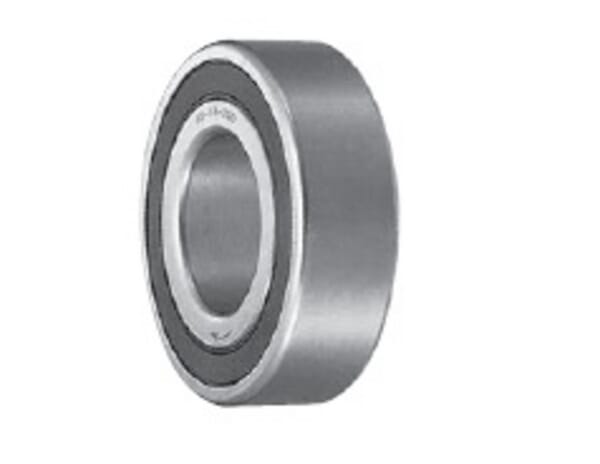

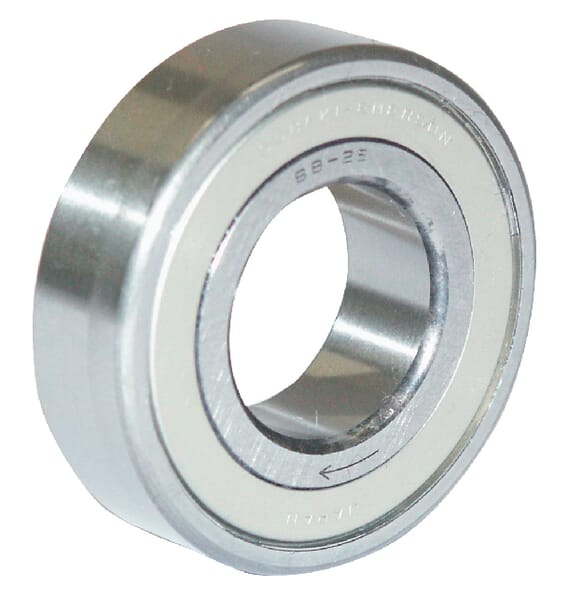

| Long description | Freewheel bearings, series BB without spline |
| Max. inner ring overrunning speed | 3500 r/min |
| Max. outer ring overrunning speed | 1900 r/min |
| Max. working torque | 43 N·m |
| Outside diameter | 40 mm |
| Properties | Torque transmitted in one direction, Freewheeling in opposite direction |
| Technical info | The arrow on the inner ring indicates the rotational direction in which the freewheel clutch locks. |
| Unit | Each |
| Width | 17 mm |
Logistics
| EAN | 0096223526779 |
|---|---|
| Unit of measure | EA |
| Weight | 125 g |
| Dimensions | 83 × 83 × 34 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000236985
Tsubaki Cam clutch bearing 20x47x19mm BB202GD
£152.76 excl.
£183.31 incl.
In stock
Expected to ship on Monday 21 September
BPA000350382

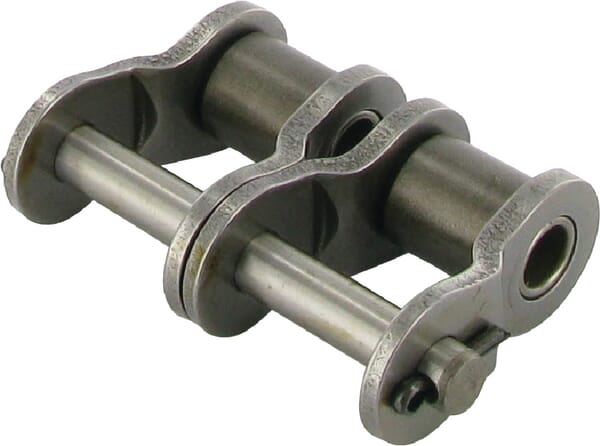

Tsubaki Crank link dupl. 1x17.02 RS16B2V
£25.93 excl.
£31.12 incl.
In stock
Expected to ship on Monday 21 September
BPA000354589

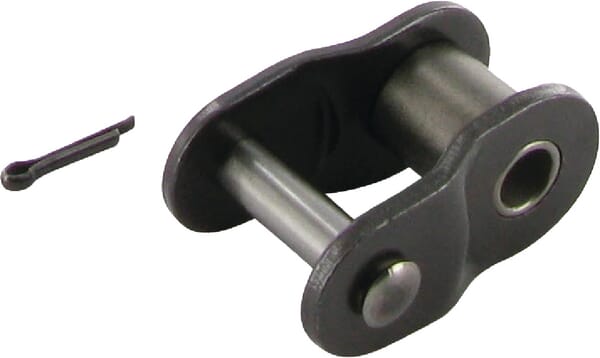

Tsubaki Crank link ASA 60 RS60V
£8.93 excl.
£10.72 incl.
In stock
Expected to ship on Monday 21 September
BPA000354580
Tsubaki Crank link ASA 60 H RS601HV
£13.74 excl.
£16.49 incl.
In stock
Expected to ship on Monday 21 September
BPA000350476

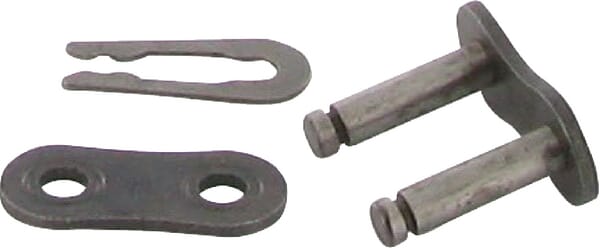

Tsubaki Connecting link RS25S
£2.48 excl.
£2.98 incl.
In stock
Expected to ship on Monday 21 September
BPA000350376

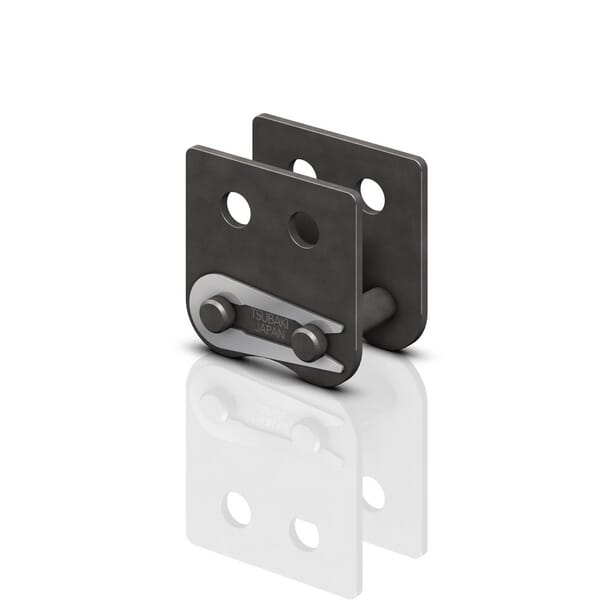

Tsubaki Connection link with clip WSK-2 RS16B1SWSK2
