£147.67
excl. VAT
£177.20 incl. VAT
£177.20
incl. VAT
£147.67 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Return stops, Switching mechanisms |
|---|---|
| Basic radial load dynamic | 10700 N |
| Basic radial load static | 6300 N |
| Benefits | Prevents damage |
| Details | Freewheeling: Clutch disengages if the driven part rotates faster than the driving part. |
| Drag torque | 0.055 N·m |
| Inside diameter | 25 mm |
| Inside diameter of outer ring | 47.05 mm |

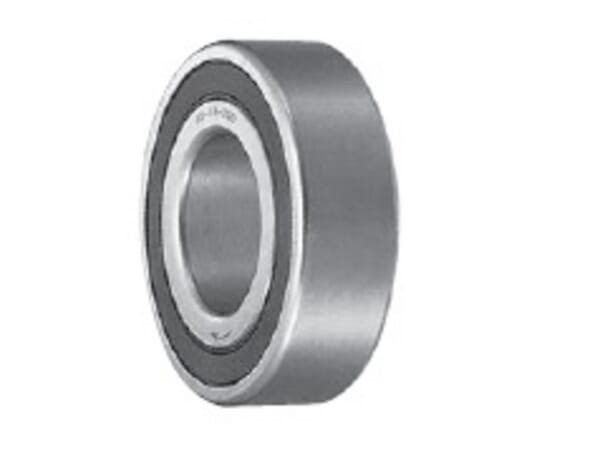

| Long description | Freewheel bearings, series BB without spline |
| Max. inner ring overrunning speed | 2500 r/min |
| Max. outer ring overrunning speed | 1400 r/min |
| Max. working torque | 78 N·m |
| Outside diameter | 52 mm |
| Properties | Torque transmitted in one direction, Freewheeling in opposite direction |
| Technical info | The arrow on the inner ring indicates the rotational direction in which the freewheel clutch locks. |
| Unit | Each |
| Width | 20 mm |
Logistics
| EAN | 0096223526908 |
|---|---|
| Unit of measure | EA |
| Weight | 211 g |
| Dimensions | 80 × 80 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000354928

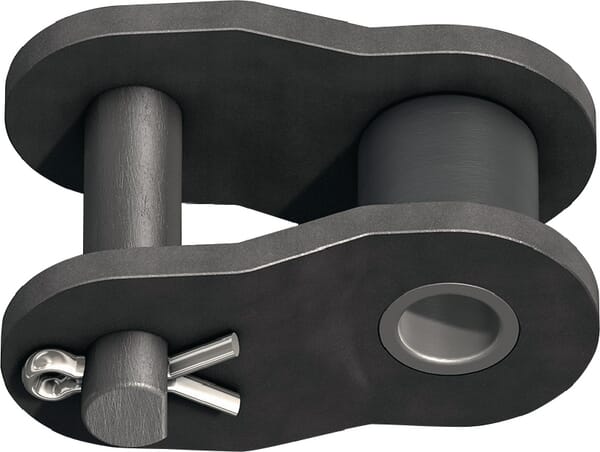

Tsubaki Crank link lambda ASA 100 RSD1001VLAMBDA
£48.37 excl.
£58.04 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000350275

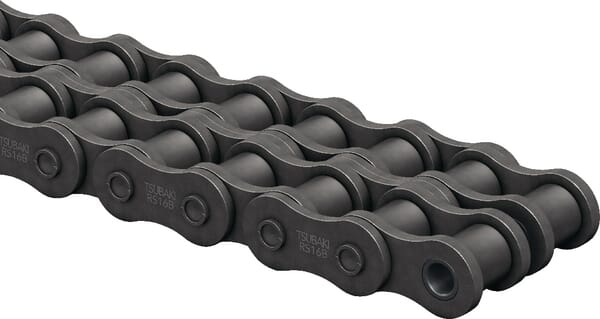

Tsubaki Roller chain dupl. 5/8 x 3/8 RS10B2
£75.71 excl.
£90.85 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000236964

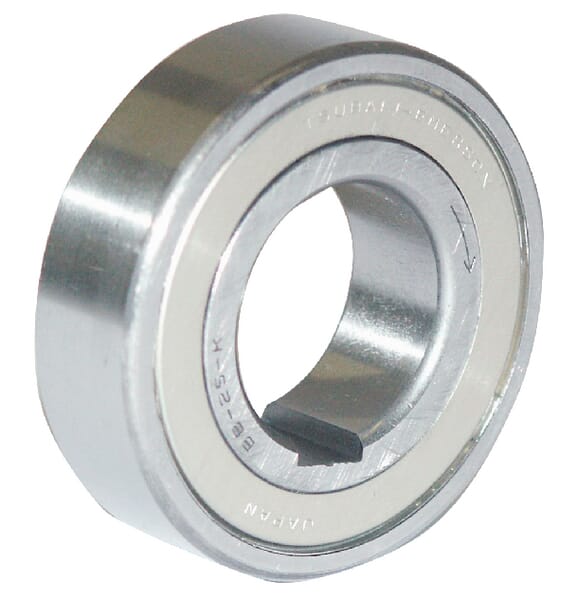

Tsubaki Cam clutch bearing with keyway 20x47x14mm BB201K
£135.37 excl.
£162.44 incl.
In stock
Expected to ship on Monday 21 September
BPA000354583

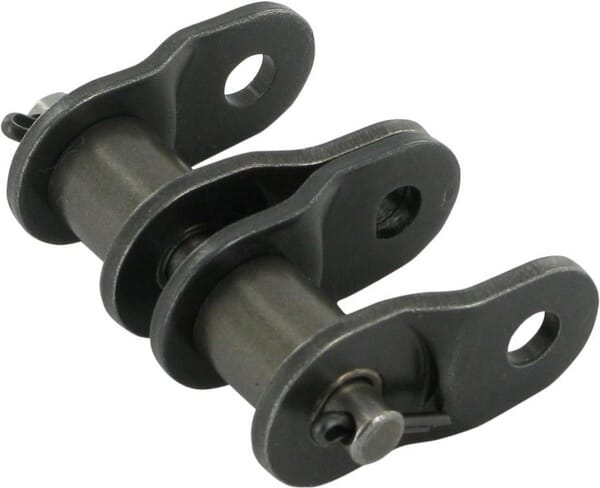

Tsubaki Crank link duplex ASA 60 RS602V
£19.38 excl.
£23.26 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000350233

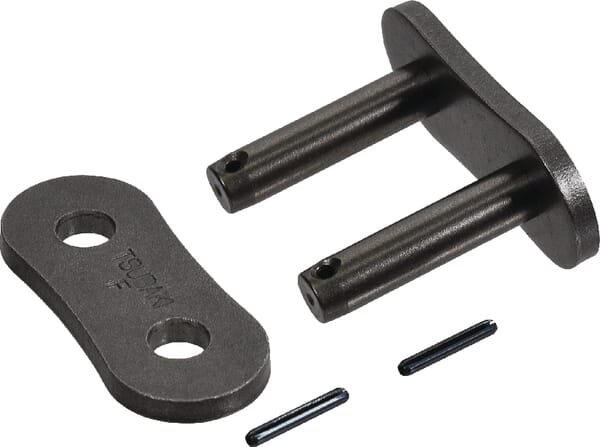

Tsubaki Transmission link ASA 100 Super H RS1001SUPHS
£21.13 excl.
£25.36 incl.
In stock
Expected to ship on Monday 21 September
BPA000350226

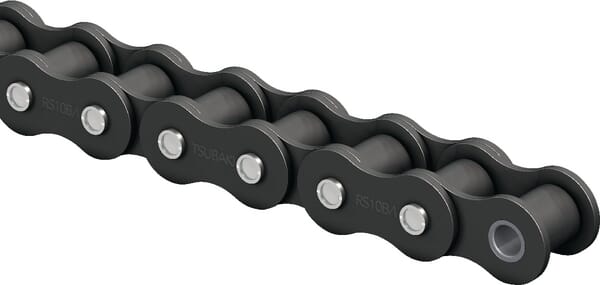

Tsubaki Roller chain Lambda 1/2x5/16 RS08BLAMBDA1
