£8.07
excl. VAT
£9.68 incl. VAT
£9.68
incl. VAT
£8.07 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

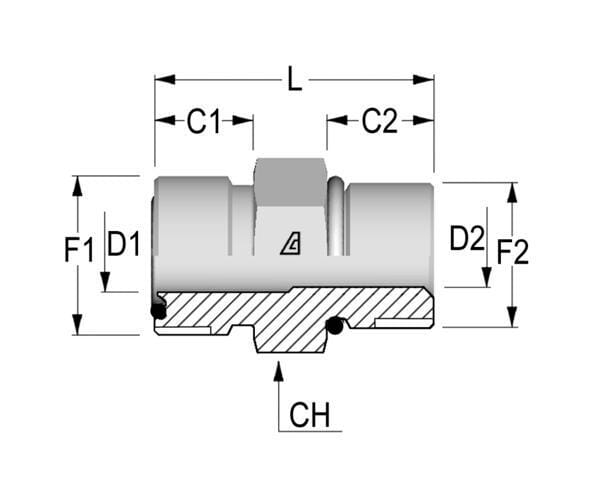

| C1Connection no 1 thread length | 15.5 mm |
|---|---|
| C2Connection 2, thread length | 18.5 mm |
| Connection 1, thread diameter | 1 Inch |
| Connection 1, thread type | ORFS |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1-1/16 Inch |
| Connection 2, thread type | UNF |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Long description | ORFS couplings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time. |
| LTotal length | 47 mm |
| Material | Steel |
| Max working pressure | 400 BAR |
| Product details | O-Ring Face Seals, O-ring in recess on the connection surface of the nipple, Standard : SAE I 1453, Material: Steel, Surface treatment : Zinc-plated, Viton seal available on request |
| Pros | High tightening torque, Reusable |
| Shape | Straight |
| Surface treatment | Galvanised |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 181 g |
| Dimensions | 60 × 33 × 33 mm |
| Dangerous goods | No |
You might also like
BPA000186267

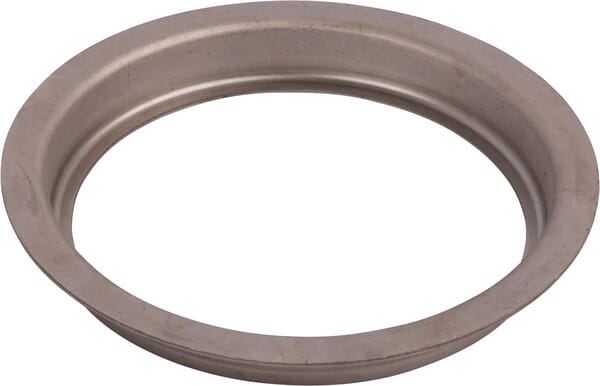

Unbranded Washer 87023704N
£66.99 excl.
£80.39 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000395419

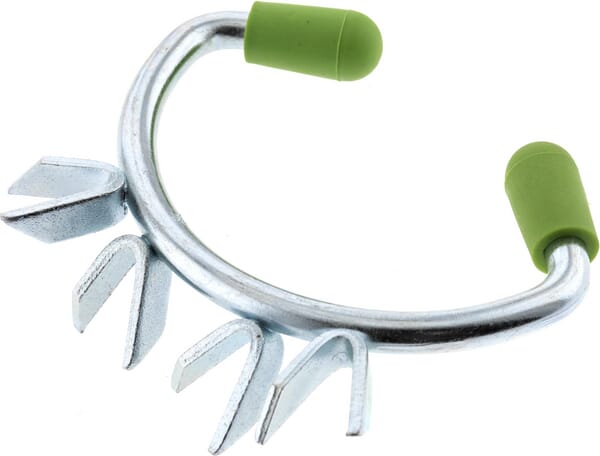

Unbranded Pattebøjle kalve VV7601
£4.02 excl.
£4.82 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000117962

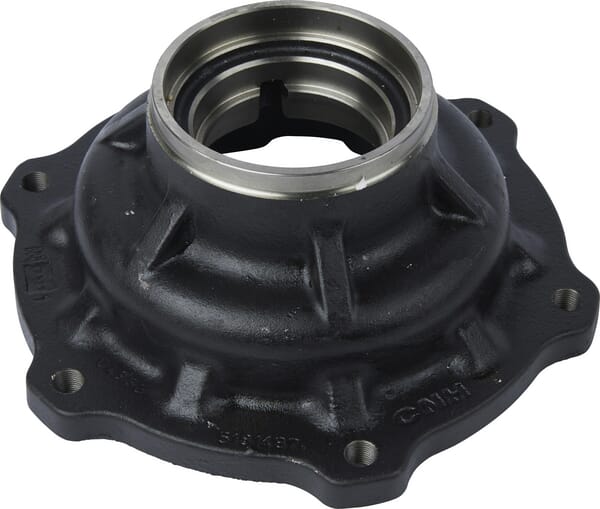

Unbranded Hub 44908916N
£293.19 excl.
£351.83 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000052694
Unbranded Automatic drinker tank for piglets, 5 l 1608028009
£5.14 excl.
£6.17 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000235857

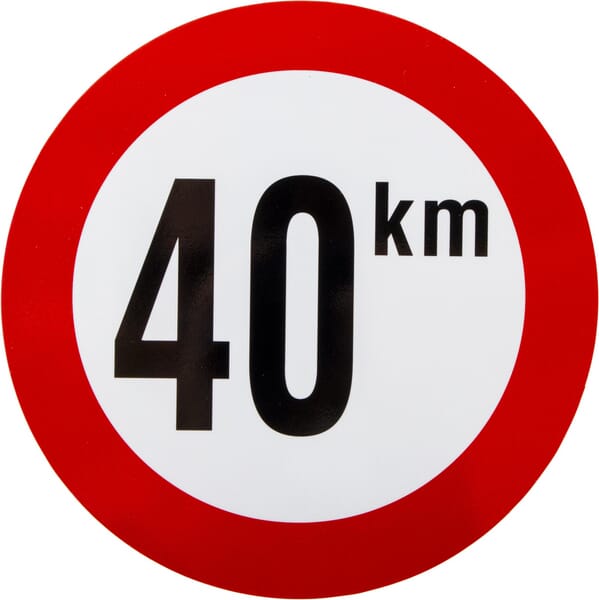

Unbranded Board 40 km PVC BK40
£12.20 excl.
£14.64 incl.
In stock
Expected to ship on Friday 18 September
BPA000265049

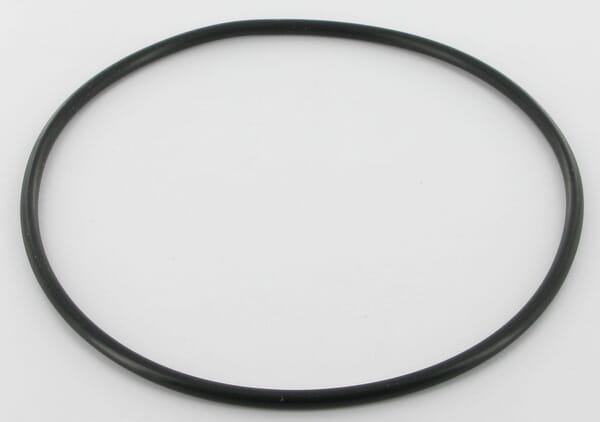

Unbranded Liner O-ring F281202210030N
