Product details
| Colour | Blue |
|---|---|
| Crimping force | 1200 kN |
| Dies type code | 239 |
| Drive type | Electro motor |
| Includes | Hose press machine, Quick release, Storage plate for die set, Die set ( Ø 17 - 20 - 24 - 28 - 32 - 40 - 44 - 50), Excluding oil, Excludes plug |
| Long description | Thanks to its compact and innovative design, the Uniflex S3 offers a very user-friendly and ergonomic working environment. By using long Crimp tools, 90° bends up to 1"¼ can be effortlessly pressed. Lubricant-free plain bearing technology reduces friction by 20%, resulting in lower maintenance costs and preventing premature wear due to lubricant contamination. With a pressing force of 120 tonnes, the S3ECO offers as much as 20% more pressing capacity than comparable hose presses on the market. This allows you to press stronger or more difficult couplings with consistently accurate pressing results without any problems. |
| Model | S3 Ecoline |
| Nominal voltage | 400 V |
| Power | 3000 W |
| Product details | Pressure range up to 1 1/2" - 1SN / 2SN, Pressure range up to 1 1/4" - 4SP / 4SH/R15 (420 bar hose types), Short press size adjustment times with the precision micrometer, Lubricant free thanks to plain bearing, Stops when the swage setting is reached, Precise and reliable |
| Pros | Low maintenance cost, Lubricant free, Increased productivity, Consistently accurate press results |
| Tank capacity | 35 l |
| Total height | 672 mm |
| Total length | 592 mm |
| Total width | 545 mm |
| Unit | Each |
| Weight | 150 kg |
Logistics
| EAN | 8716106440214 |
|---|---|
| Unit of measure | EA |
| Weight | 150000 g |
| Dimensions | 1200 × 800 × 800 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000288816
Uniflex Die set diameter 32 HM/S press HM92398032
£282.25 excl.
£338.70 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000288849
Uniflex Dies-set 263, 47 to 50mm HM926347
£220.14 excl.
£264.17 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000260772
Uniflex Hose cutting machine EM3ECO
£1,394.84 excl.
£1,673.81 incl.
In stock
Expected to ship on Wednesday 30 September
Free shipping

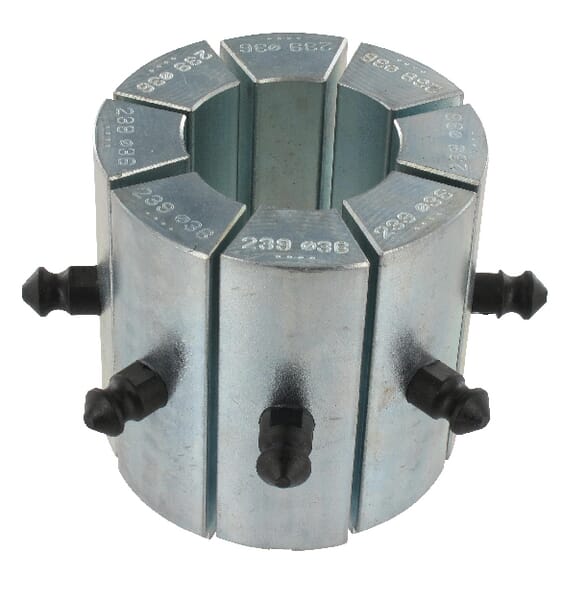

BPA000288805
Uniflex Die set diameter 14 HM/S press HM92395014
£282.25 excl.
£338.70 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

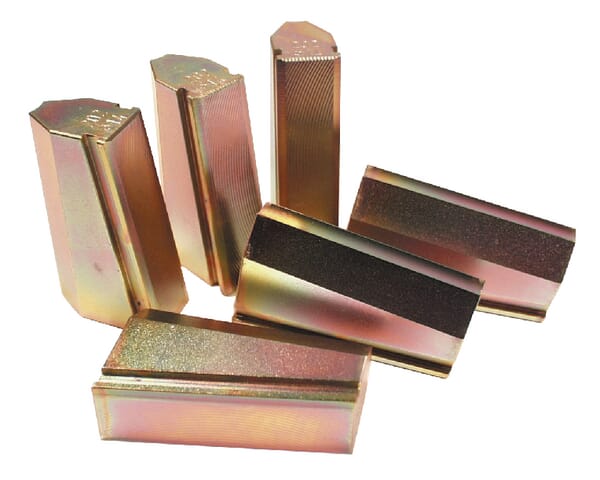

BPA000288771
