About this product

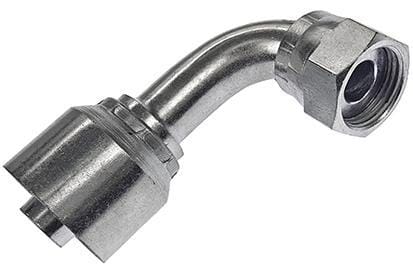

A set of five female ORFS (O-ring face seal) swivel inserts with a 90-degree elbow configuration. Each insert features a male hose end connection of 1/2 in diameter and a female ORFS swivel nut connection measuring 13/16 in with 16 threads per inch. The insert is manufactured from steel and is designed for 12 mm pipe work with a centre-to-end distance of 40 mm on the hose side. The pack is supplied in a shipping carton measuring 200 mm length × 125 mm width × 40 mm height, with a total weight of 798 g. The EAN for this product is 5035776034350.
Product details
| Cone angle | 90 ° |
|---|---|
| Connection 1, type | Hose end |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 13/16 Inch |
| Connection 2, threads per inch | 16 |
| Connection 2, thread type | ORFS |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection no 1 center to end distance | 40 mm |
| Connection no 1 diameter | 1/2 Inch |
| Content in sale unit | 5 pcs |
| Material | Steel |
| Pipe diameter | 12 mm |
| Shape | Elbow 90° |
| Unit | Pack |
Logistics
| EAN | 5035776034350 |
|---|---|
| Unit of measure | PAC |
| Weight | 798 g |
| Dimensions | 200 × 125 × 40 mm |
| Dangerous goods | No |
