£290.69
excl. VAT
£348.83 incl. VAT
£348.83
incl. VAT
£290.69 excl. VAT
Free shipping
In stock
Expected to ship on Monday 28 September
Product details
| Bend radius | 115 mm |
|---|---|
| Burst pressure | 1400 BAR |
| Content in sale unit | 50 pcs |
| Hose inside diameter | 7.9 mm |
| Length | 50 m |

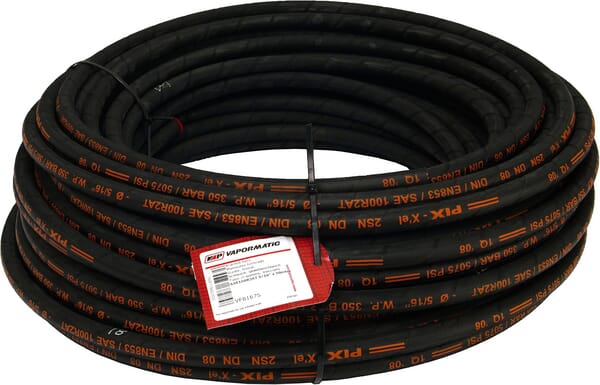

| Long description | The Vapormatic SAE 100 R2AT hydraulic hose is a high-pressure, two-wire braided hydraulic hose designed for demanding agricultural, industrial, and mobile hydraulic applications. Built to meet and exceed SAE 100R2AT and EN 853 2SN standards, the hose delivers excellent pressure capability, durability, and flexibility for hydraulic systems operating under severe working conditions. The R2AT construction is a non-skive hose type, allowing easier and faster hose assembly with compatible fittings. |
| Max working pressure | 350 BAR |
| Product details | Hose on reel, SAE 100 R2AT / EN 853 2SN compliant, Two high-tensile steel wire braids, High-pressure hydraulic performance, Excellent impulse and fatigue resistance, Oil-, abrasion-, and weather-resisant outer cover, Non-skive hose construction, Suitable for mobile and industrial hydraulics, Long service life in harsh operating environments, Tube: Oil-resistant synthetic rubber, Reinforcement: Two layers of high-tensile steel wire braid, Cover: Abrasion-, oil-, ozone-, and weather-resistant synthetic rubber, Temperature Range: -40°C to +100°C continuous, up to +120°C intermittent depending on fluid type and application, Applicable Standards: SAE 100 R2AT, EN 853 2SN, ISO 1436 |
| Unit | Pack |
| Weight | 0.45 kg/m |
Logistics
| EAN | 5035776682858 |
|---|---|
| Unit of measure | PAC |
| Weight | 23780 g |
| Dimensions | 465 × 465 × 335 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000378712

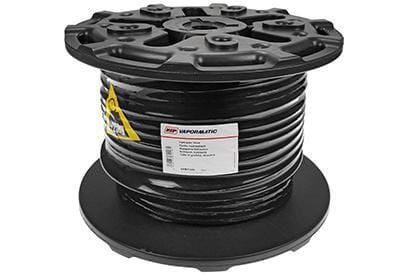

Vapormatic Hydraulic hose (50m) VFB1225
£375.86 excl.
£451.03 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000386171

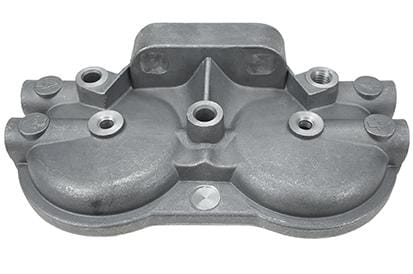

Vapormatic Double - Fuel Filter Head VPD4301
£13.99 excl.
£16.79 incl.
In stock
Expected to ship on Monday 28 September
BPA000387540

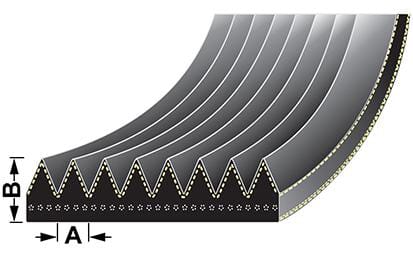

Vapormatic Belt VPE6413
£19.77 excl.
£23.72 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000385606
Vapormatic Main bearing pair STD VPC3080
£22.63 excl.
£27.16 incl.
In stock
Expected to ship on Monday 28 September
BPA000393679

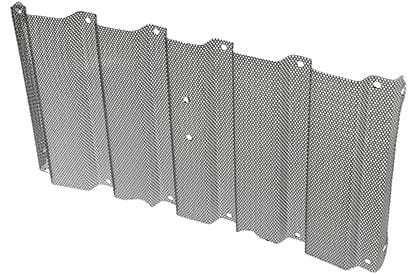

Vapormatic Front Grille Insert VPM1254
£79.93 excl.
£95.92 incl.
In stock
Expected to ship on Monday 28 September
BPA000389666

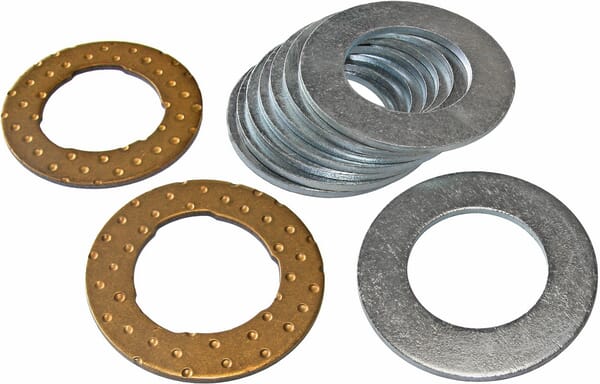

Vapormatic Bearing VPJ2439
