Roll over image to zoom in · Click to see full view
£3,263.11
excl. VAT
£3,915.73 incl. VAT
£3,915.73
incl. VAT
£3,263.11 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Content in sale unit | 1 pcs |
|---|---|
| Cylinder head bolt size | 9/16 Inch |
| Extra info | The Short Motors are built in the U.K. by our engineers who ensure all critical measurements are checked at every stage of the build process., The all new block is manufactured exclusively for Vapormatic, using the very latest “lost-foam” casting technique. 21st century foundry processes and metallurgical specification deliver a high degree of accuracy and an excellent surface finish, both internally and externally., Product information & Technical specification: ; Engine Type: BSD333 ; Bore: 111.778mm ; Stroke: 111.778mm ; Cylinders: 3 ; Cylinder head bolt size: 9/16” UNC, Typical applications: ; Direct replacement, BSD333: 4000, 4600, 4610, 4130, 4330, 4630 ; Also replaces, BSD326, BSD329, BSD330 & BSD332 - 2000, 3000, 2600, 3600, 3900, 4100, 2310, 2610, 2810, 2910, 4110, 3230, 3430, 3930., Earlier specification engines with ½” UNC thread cylinder head bolts will also require cylinder head bolt kit VPA3913 and VPA5083 timing cover kit bolt kits to complete installation of the New Short Motor. VPA5080 may also be required, You will need the following additional items: ; Cylinder head gasket: VPA4301 ; Cylinder head gasket set: VPA4101 ; Bottom gasket set: VPC6105 ; Oil pump is included and must be fitted. ; Does not include rear seal housing ; Other items may also be needed dependant on history of machine |
| Number of cylinders | 3 |
| Piston stroke | 111.778 mm |
| Properties | Many versions of the Ford 4 Cylinder BSD series engine are in use. This attached information sheet helps to identify the different engine versions and the components required when installing a Vapormatic Short Motor VPB8026 or VPB8025., In support of the replacement Ford 4 cylinder short motor, Vapormatic introduces a cost effective single part number fitting kit - VPB8552. |
| Suitable for machine/vehicle engine model | BSD333 |
| Unit | Each |
Logistics
| EAN | 5035776687259 |
|---|---|
| Unit of measure | EA |
| Weight | 190000 g |
| Dimensions | 780 × 605 × 490 mm |
| Dangerous goods | No |
You might also like
BPA000383773
Vapormatic Classic Belt VLM7029
£6.45 excl.
£7.74 incl.
In stock
Expected to ship on Wednesday 30 September
BPA000372791
Vapormatic Drive Belt V4L0830
£15.46 excl.
£18.55 incl.
In stock
Expected to ship on Wednesday 30 September
BPA000391898

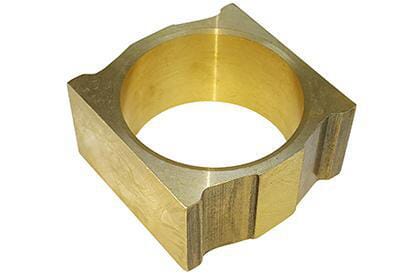

Vapormatic Rear cam block VPK1404
