Roll over image to zoom in · Click to see full view
£116.46
excl. VAT
£139.75 incl. VAT
£139.75
incl. VAT
£116.46 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 1 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| BOutside rod diameter | 30 mm |
|---|---|
| C1Thread direction - end side (steering) | Right |
| Content in sale unit | 1 pcs |
| CThread diameter - rod side | M18 |
| CThread direction - rod side | n/a |
| CThread pitch - rod side | 1.50 mm |
| CThread type - rod side | Metric |
| Curved | No |
| D1Min. connection diameter | 20 mm |
| D2Max. connection diameter | 22 mm |
| EEnd cone length | 25 mm |
| FPitch of thread - end side (wheel) (mm) | 1.50 mm |
| FThread diameter - end side (wheel) (metric) | M18 |
| FThread direction - end side (wheel) | Right |
| FThread length - end side (wheel) (mm) | 22.5 mm |
| FThread type - end side (wheel) | Metric |

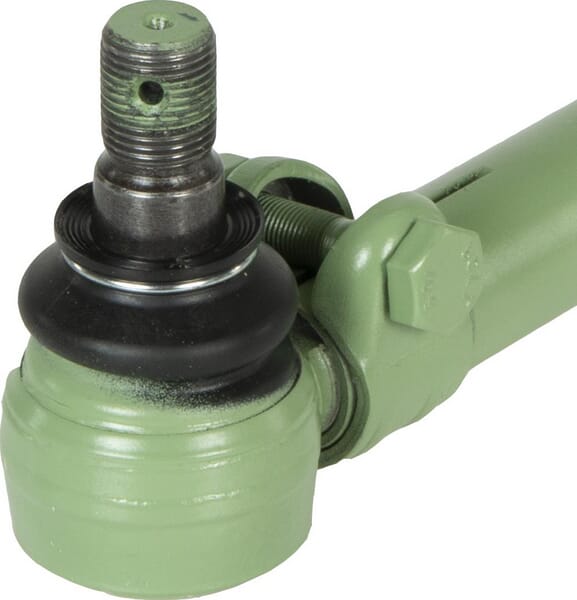

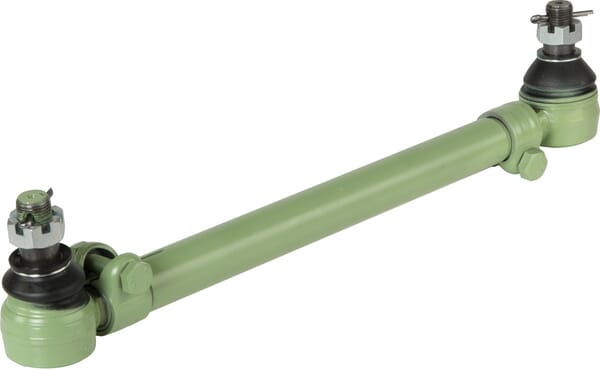

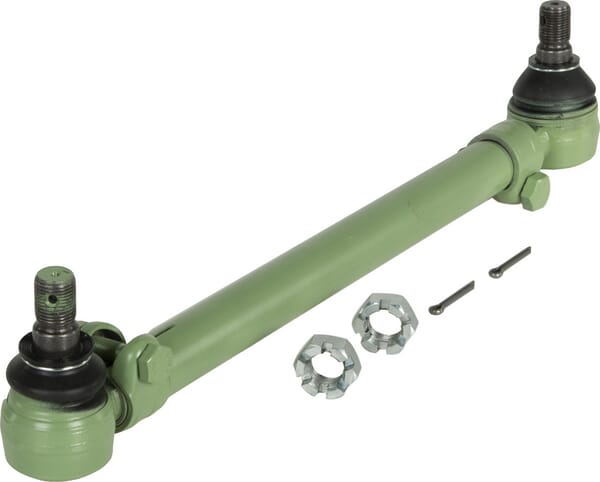

| Long description | Overview tie rod ends with axial tie rod end |
| Original number equivalent | AL38637, AL82828 |
| Unit | Each |
| Working length | 420 mm |
| Working length range | 428-680 mm |
Logistics
| EAN | 5035776915086 |
|---|---|
| Unit of measure | EA |
| Weight | 3310 g |
| Dimensions | 475 × 100 × 60 mm |
| Dangerous goods | No |
You might also like
BPA000361369
Kramp Tie rod assembly SHP751KR
£84.04 excl.
£100.85 incl.
In stock
Expected to ship on Thursday 1 October
Free shipping
BPA000361443
Kramp Tie rod assembly SHP832KR
£122.92 excl.
£147.50 incl.
In stock
Expected to ship on Thursday 1 October
Free shipping
BPA000361432
Kramp Tie rod assembly SHP821KR
£155.60 excl.
£186.72 incl.
In stock
Expected to ship on Thursday 1 October
Free shipping
BPA000164625

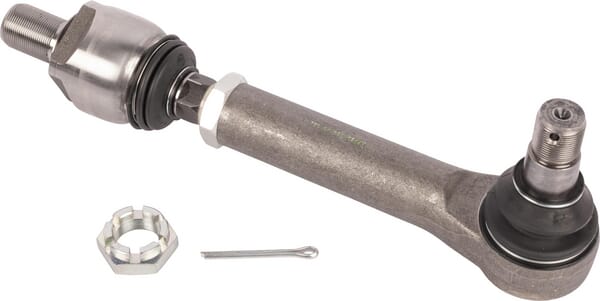

Spicer Dana Tie rod assembly 7392462202
