£1.66
excl. VAT
£1.99 incl. VAT
£1.99
incl. VAT
£1.66 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details

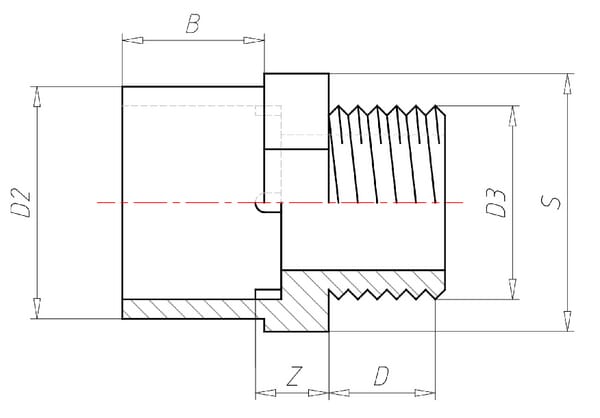

| Application range | PVC-U fittings are not suitable for compressed air lines! |
|---|---|
| BConnection no 1 length | 16 mm |
| Connection 1, type | Glued |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | 3/4 Inch |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection no 1 thread length | 19 mm |
| D2Connection no 1 diameter | 20 mm |
| EN Standard | 1452-3 |
| ISO standard | 1452-3, 7, 228 |
| Material | PVC-U |
| Max working pressure | 16 BAR |
| Properties | Visual top quality, Excellent fit, Strengthening in the neck radius, Position marks on the product, Products tested at 4.2x nominal pressure, The tolerances, pressure resistance and visual quality meet the highest requirements in the market |
| SConnection no 1 wrench size | 32.0 mm |
| Shape | Straight |
| Unit | Each |
| Weight | 18 g |
| ZConnections distance | 8 mm |
Logistics
| EAN | 8717284011401 |
|---|---|
| Unit of measure | EA |
| Weight | 17 g |
| Dimensions | 40 × 34 × 31 mm |
| Dangerous goods | No |
