VdL Clamp 140/167 BP140167

About this product

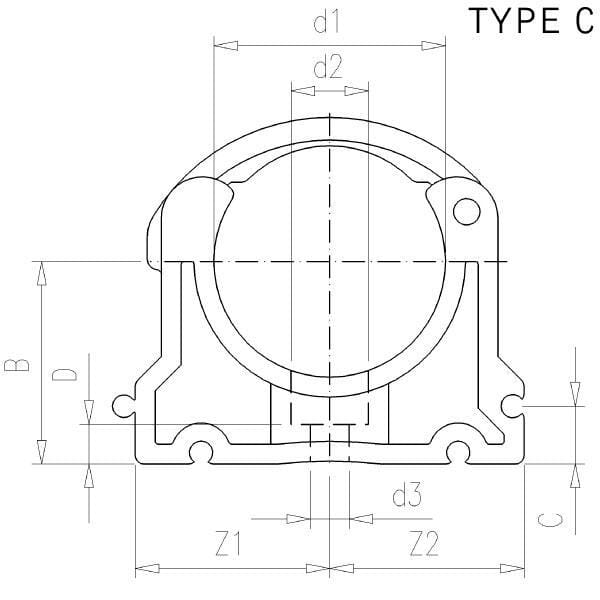

A C-type polypropylene pipe clamp designed for use with PVC pipe in the 140–167 mm diameter range. The clamp features a minimum working diameter of 140 mm and a maximum working diameter of 167 mm, with mounting holes of 8.5 mm diameter spaced 10 mm in length and positioned 97 mm from the centre to each end. The bottom-to-pipe-centre distance measures 110 mm, and the bottom-to-connection-part distance is 10 mm. The clamp body has a thickness of 31.5 mm and accommodates screw heads up to 17 mm diameter. This clamp is compatible with pipe clamp fill blocks for additional support. Supplied as a single piece, the clamp weighs 224 g and carries the EAN 8717284004793.
