£7.40
excl. VAT
£8.88 incl. VAT
£8.88
incl. VAT
£7.40 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| ANSI standard | B16.5 |
|---|---|
| Application range | PVC-U fittings are not suitable for compressed air lines! |

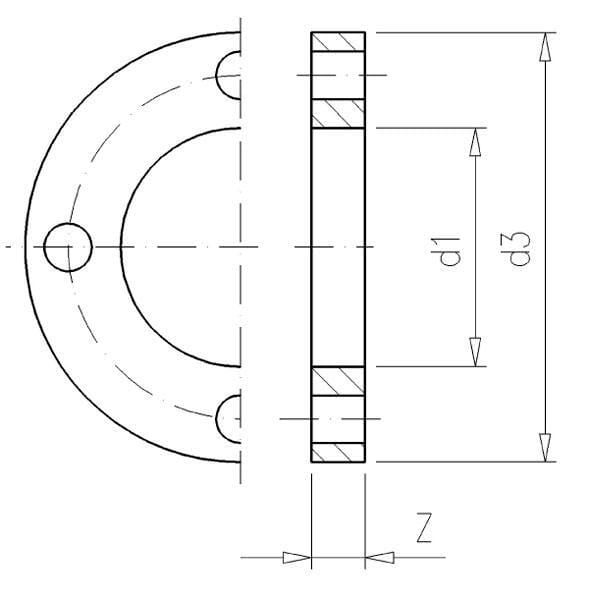

| d1Inside diameter | 28 mm |

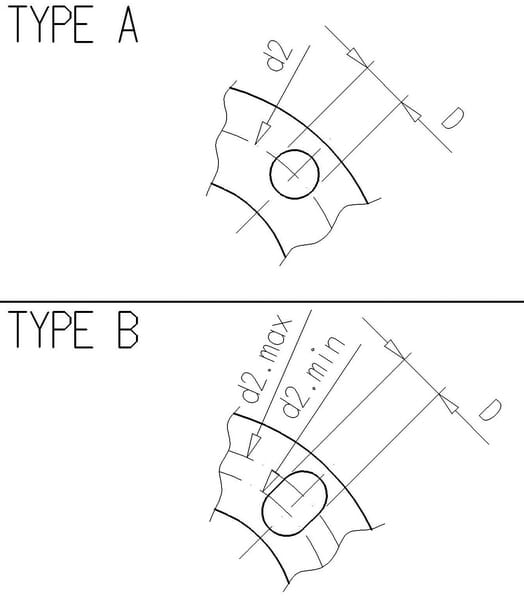

| d2Flange mounting holes distance | 63 mm |
| d2.min.Flange mounting holes distance 2 | 60.5 mm |
| d3Outside diameter | 95 mm |
| DConnection holes diameter | 16 mm |
| DIN standard | 2501 |
| EN Standard | 1452-3 |
| Flange mounting holes number | 4 |
| ISO standard | 1452-3, 7, 228 |
| Material | PVC-U |
| Max working pressure | 10 BAR |
| Properties | Visual top quality, Excellent fit, Strengthening in the neck radius, Position marks on the product, Products tested at 4.2x nominal pressure, The tolerances, pressure resistance and visual quality meet the highest requirements in the market |
| Unit | Each |
| Weight | 0.07 kg |
| ZThickness | 11 mm |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8717284012224 |
|---|---|
| Unit of measure | EA |
| Weight | 68 g |
| Dimensions | 95 × 95 × 11 mm |
| Dangerous goods | No |
