Product details
| Application range | PVC-U fittings are not suitable for compressed air lines! |
|---|---|
| Connection diameter | 20 mm |
| Connection type | Glued |

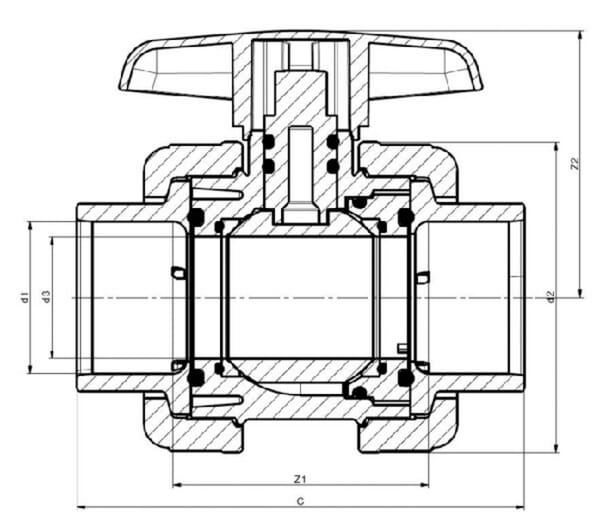

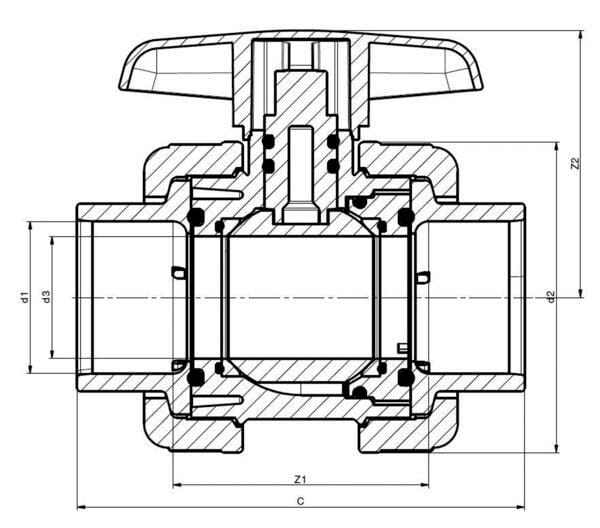

| CTotal length | 84 mm |
| d2Housing height | 59 mm |
| Housing material | PVC-U |
| Long description | Application:, PVC-U fittings are not suitable for compressed air lines!, Properties:, Union nut on both sides, Radially expandable, Ball secured against flushing, Seals made from EPDM |
| Max working pressure | 16 BAR |
| Nominal inner diameter | 15 mm |
| Number of ports | 2 |
| Number of positions | 2 |
| Properties | Visual top quality, Excellent fit, Double sided – flush-out secured, Ball valves are individually tested for leakage, Seals are available in EPDM and FPM, Union nut on both sides, Radially expandable, Ball secured against flushing |
| Type | Manual valve |
| Unit | Each |
| Z1Installation length | 50 mm |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8717284018387 |
|---|---|
| Unit of measure | EA |
| Weight | 165 g |
| Dimensions | 83 × 73 × 55 mm |
| Dangerous goods | No |
