£6,179.56
excl. VAT
£7,415.47 incl. VAT
£7,415.47
incl. VAT
£6,179.56 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Particularly well suited as a liquid manure pump for the farm, Perfect for mobile applications such as filling and emptying tankers and transferring slurry between pits- The standard solution for pumping tasks in farm and field |
|---|---|
| Benefits | Long service life |
| Details | Robust, reliable, and proven, Very resistant to dry running |
| Drive shaft | 1x smooth Ø32mm |
| Flow max. | 75 l/min |
| Length L1 | 226 mm |
| Length L2 | 451.5 mm |
| Length L3 | 680 mm |
| Length L4 | 181 mm |
| Oil capacity | 1 l |
| Pressure max. | 3 BAR |
| Properties | Greasable shaft seals, Stored on both sides, Rotary lobes material: SBR70, With steel protective plates, Self-priming up to 7,5m (25ft), Can be opperated in both flow directions, Ensures running with low pulsations |
| Pump capacity | 186 m³/h |
| Rotation max. | 470 r/min |
| Stroke v | 6.96 l |
| Torque max. | 490 N·m |
| Unit | Each |
| Weight | 145.7 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 190000 g |
| Dimensions | 900 × 420 × 350 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000344426
Vogelsang Rotary lobe R136-140 NBR PKB028T10
£290.88 excl.
£349.06 incl.
In stock
Expected to ship on Monday 21 September

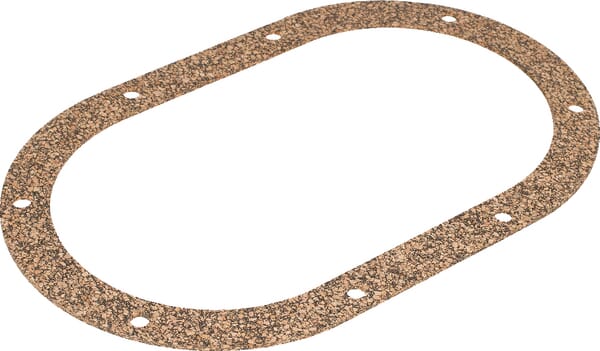

BPA000251361
Vogelsang Seal kit DAD011
£9.81 excl.
£11.77 incl.
In stock
Expected to ship on Monday 21 September
Free shipping

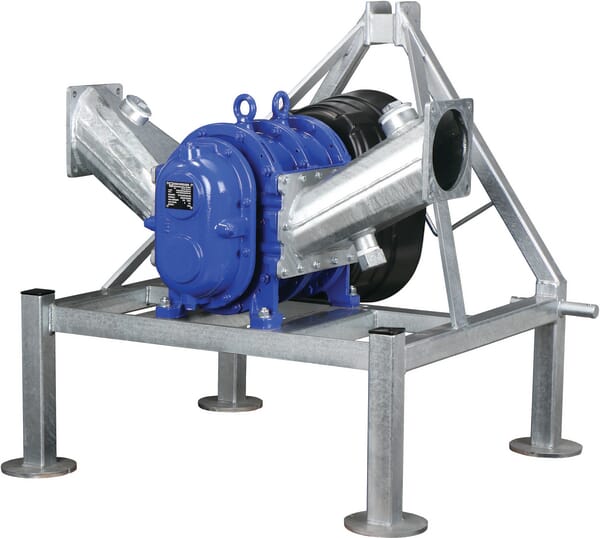

BPA000231950
Vogelsang Rotary lobe pump R136-280S+frame APK0000191
£7,612.37 excl.
£9,134.84 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000342717
Vogelsang Gauge glass 1/8" - 1/8" PSG003
£230.20 excl.
£276.24 incl.
In stock
Expected to ship on Monday 21 September

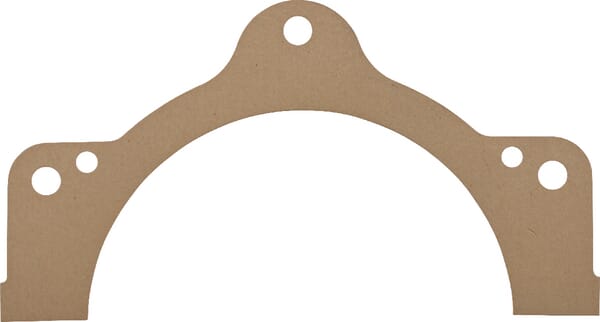

BPA000251362
Vogelsang Gasket DAD018
£7.13 excl.
£8.56 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

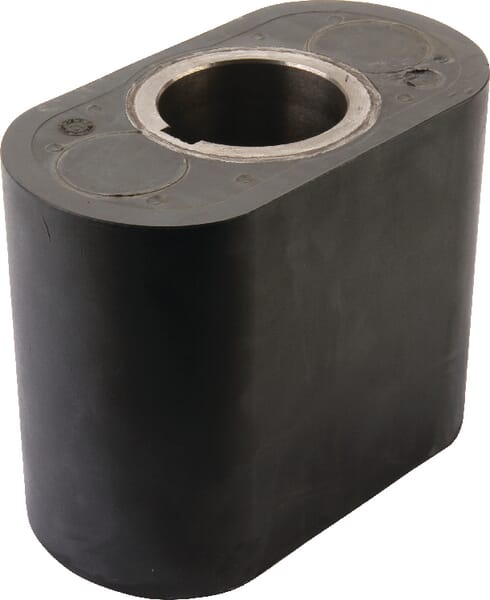

BPA000344429
