£6,820.12
excl. VAT
£8,184.14 incl. VAT
£8,184.14
incl. VAT
£6,820.12 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

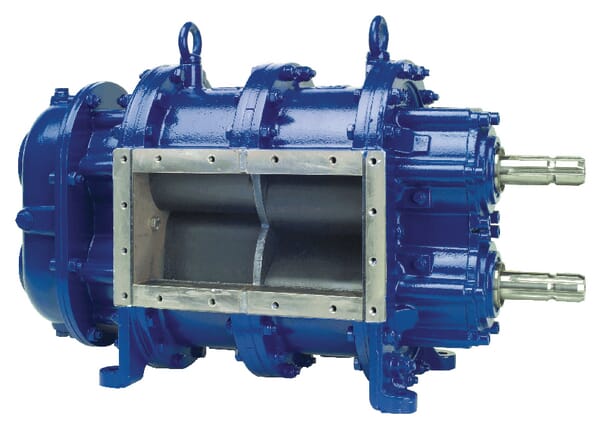

Product details
| Application range | Particularly well suited as a liquid manure pump for the farm, Perfect for mobile applications such as filling and emptying tankers and transferring slurry between pits- The standard solution for pumping tasks in farm and field |
|---|---|
| Benefits | Long service life |
| Details | Robust, reliable, and proven, Very resistant to dry running |
| Drive shaft | 2x 1 3/8" 6-pieces, for tractor drive |
| Flow max. | 5000 l/min |
| Oil capacity | 1.5 l |
| Pressure max. | 5 BAR |
| Properties | Greasable shaft seals, Stored on both sides, Rotary lobes material: SBR70, With steel protective plates, Self-priming up to 7,5m (25ft), Can be opperated in both flow directions, Ensures running with low pulsations |
| Pump capacity | 280 m³/h |
| Rotation max. | 650 r/min |
| Stroke v | 7.59 l |
| Torque max. | 768 N·m |
| Unit | Each |
| Weight | 197 kg |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 200000 g |
| Dimensions | 910 × 450 × 250 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000247381

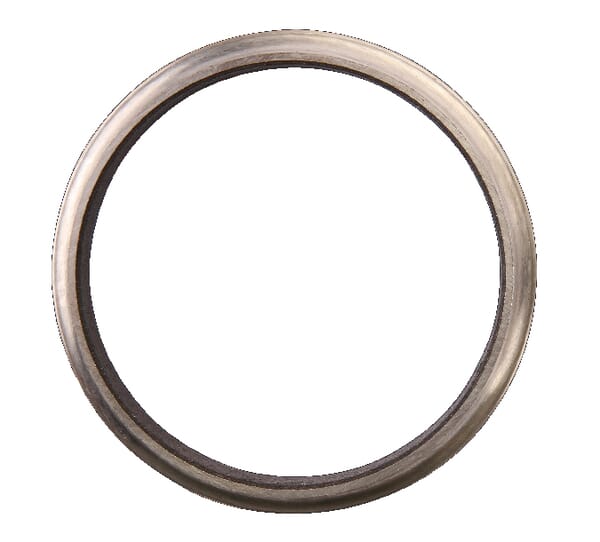

Vogelsang Guide ring DGLB012SC
£299.81 excl.
£359.77 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000250670

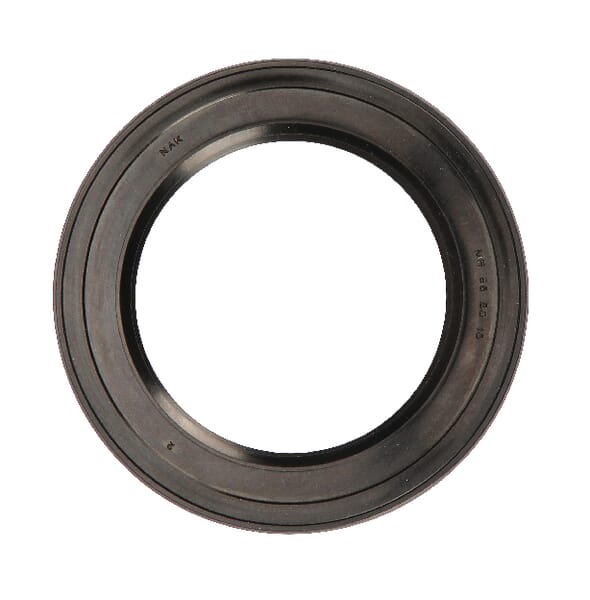

Vogelsang Seal Kit for Shaft DWD007
£34.22 excl.
£41.06 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000342758

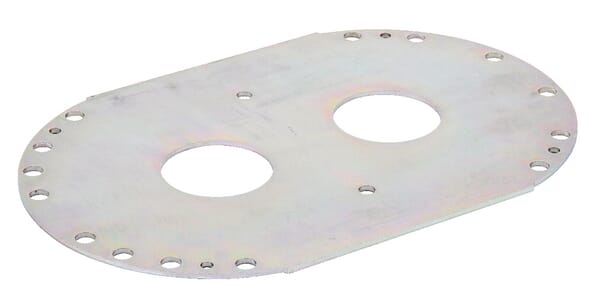

Vogelsang Protection Plate 400/74mm PSP003
£156.35 excl.
£187.62 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000342627

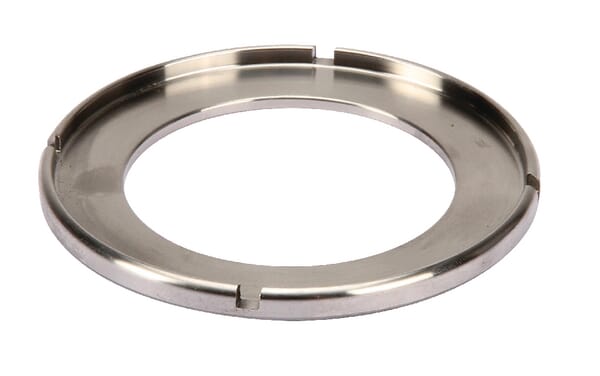

Vogelsang Support ring PRS019
£21.96 excl.
£26.35 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000342636

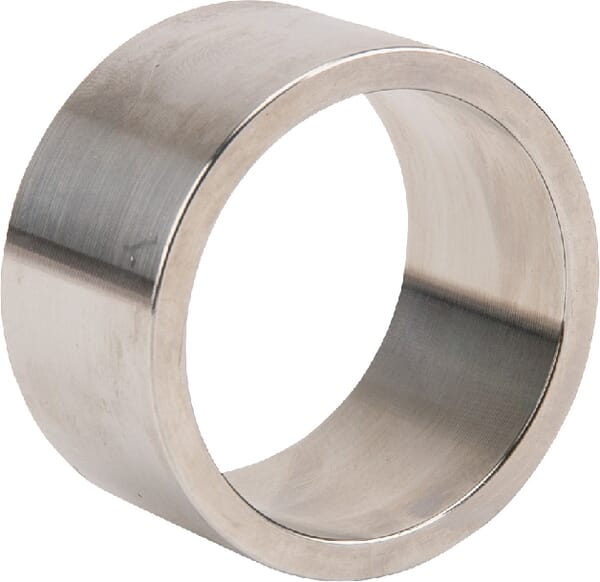

Vogelsang Spacer ring PRS037
£14.74 excl.
£17.69 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000250672

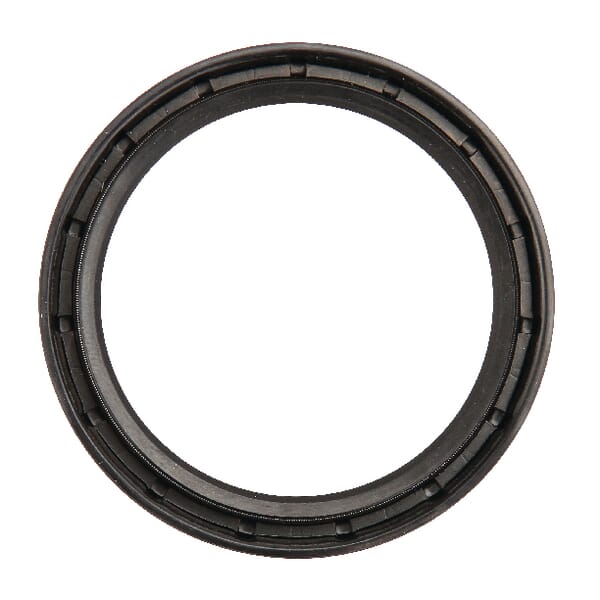

Vogelsang Seal ring DWD015
