Roll over image to zoom in · Click to see full view
£32.23
excl. VAT
£38.68 incl. VAT
£38.68
incl. VAT
£32.23 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M42 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 10 mm |
| Connection 2, thread diameter | M18 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 41.0 mm |
| Connection no 1 length | 43.5 mm |
| d1Connection no 1 diameter | 30 mm |
| D2Series connection 1 | 10S |
| DIN standard | 2401 |
| dyInside diameter side 2 | 7 mm |
| L1Length | 43.5 mm |
| L2Total length | 43.5 mm |
| Max working pressure | 420 BAR |
| Product details | Multiple corrosion resistance, Viton seal available on request |
| Seal material | Nitrile rubber [NBR] |
| Shape | Straight |
| SW3Connection no 1 wrench size | 50.0 mm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
ES410LS
Voss Cutting ring ES4 10LS ES410LS
£2.78 excl.
£3.34 incl.
ES430S
Voss Cutting ring ES4 30S ES430S
£13.06 excl.
£15.67 incl.
MV10S

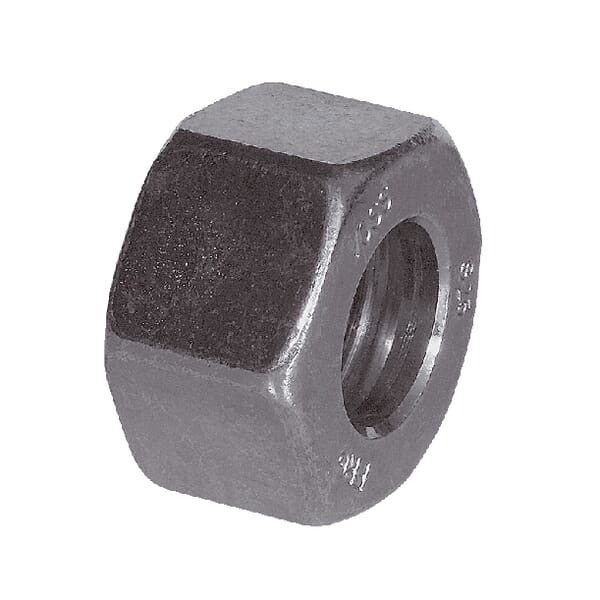

Voss Swivel nut 10S MV10S
£0.75 excl.
£0.90 incl.
MV30S
Voss Swivel nut 30S MV30S
£6.98 excl.
£8.38 incl.
SV2S10LS
Voss Cutting ring 10LS SV2S10LS
£0.51 excl.
£0.61 incl.
SV2S30S
Voss Cutting ring 30S SV2S30S
£2.21 excl.
£2.65 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 402 g |
| Dimensions | 56 × 55 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000355208
Voss Banjo coupling 15L M22 RSWV15LM22
£30.48 excl.
£36.58 incl.
In stock
Expected to ship on Friday 2 October
BPA000355137
Voss Angled banjo coupling RSWS20SM27
£43.49 excl.
£52.19 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000288592
Voss Coupling 42L R1-1/4 GEV42LR114
£47.87 excl.
£57.44 incl.
In stock
Expected to ship on Friday 2 October
BPA000279933
Voss Coupling 15L R3/8 GAV15LR38
£16.42 excl.
£19.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000355247

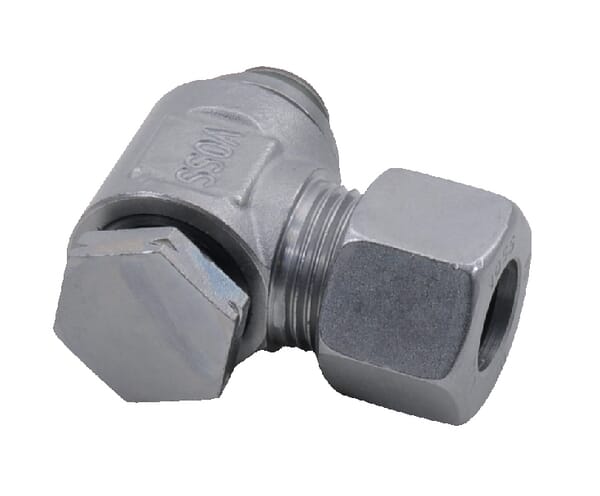

Voss Banjo coupling 6S-1/4" BSP RSWV6SR14
