Roll over image to zoom in · Click to see full view
£27.44
excl. VAT
£32.93 incl. VAT
£32.93
incl. VAT
£27.44 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details

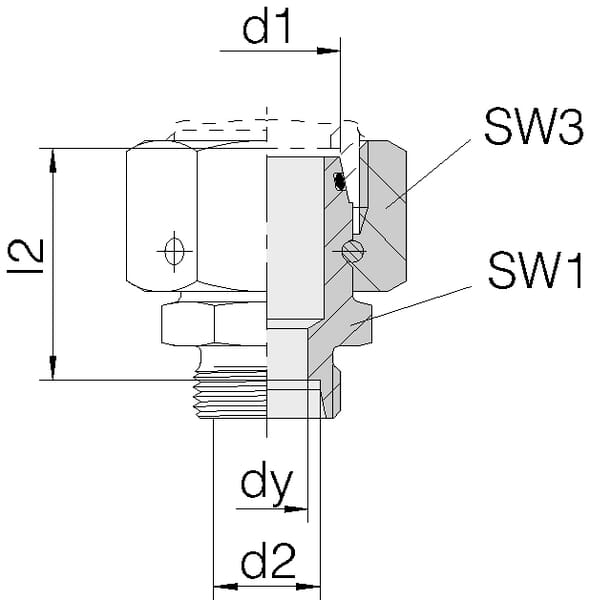

| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M42 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 12 mm |
| Connection 2, thread diameter | M20 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 41.0 mm |
| Connection no 1 length | 43.5 mm |
| d1Connection no 1 diameter | 30 mm |
| D2Series connection 1 | 12S |
| DIN standard | 2401 |
| dyInside diameter side 2 | 8 mm |
| L1Length | 43.5 mm |
| L2Total length | 43.5 mm |
| Max working pressure | 420 BAR |
| Product details | Multiple corrosion resistance, Viton seal available on request |
| Seal material | Nitrile rubber [NBR] |
| Shape | Straight |
| SW3Connection no 1 wrench size | 50.0 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 405 g |
| Dimensions | 55 × 53 × 50 mm |
| Dangerous goods | No |
