Roll over image to zoom in · Click to see full view
£9.72
excl. VAT
£11.66 incl. VAT
£11.66
incl. VAT
£9.72 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Body height | 17 mm |
|---|---|
| Cone angle | 24 ° |
| Connection 1, thread diameter | M12 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 6 mm |
| Connection 2, thread diameter | M12 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 14.0 mm |
| Connection no 1 center to end distance | 12 mm, 48 mm |
| Connection no 1 diameter | 6 mm |
| Connection no 1 wrench size | 14.0 mm |
| DIN standard | 80750, 2401, 2353 |
| Hexagon nut size | 17 mm |
| Includes | Cutting ring coupling, Bulkhead nut included, Without cutting ring and nut |
| Inside diameter | 4 mm |
| Material | Steel |
| Max working pressure | 315 BAR |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance |
| Pros | Reduced risk of leakage |
| Series connection 1 | 6S |
| Series connection 2 | 6S |
| Shape | Bulkhead 90° |
| Surface treatment | Nickel-plated, Zinc |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 55 g |
| Dimensions | 55 × 30 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000279935
Voss Coupling 16S R1/2 GAV16SR12
£11.72 excl.
£14.06 incl.
In stock
Expected to ship on Monday 5 October
BPA000298866

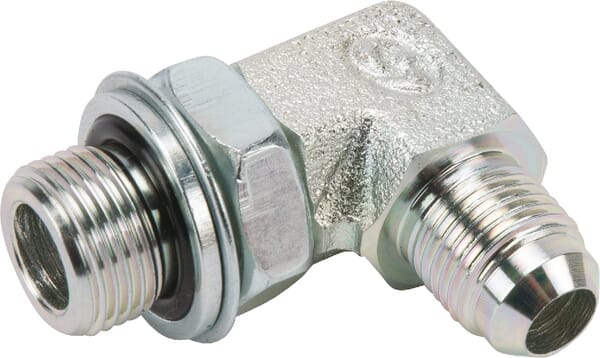

Voss Elbow 9/16JICx1/4BSP KIBV0904OR
