£11.34
excl. VAT
£13.61 incl. VAT
£13.61
incl. VAT
£11.34 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Body height | 40 mm |
|---|---|
| Cone angle | 74 ° |
| Connection 1, thread diameter | 7/8 Inch |
| Connection 1, thread type | JIC |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | 1/2 Inch |
| Connection 2, threads per inch | 14 |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection no 1 threads per inch | 14 |
| DConnection 2, thread length | 14 mm |
| Long description | Straight screw-in JIC gland/BSP FMUBV - WD |
| Material | Steel |
| Max working pressure | 250 BAR |
| Series connection 1 | n/a |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 124 g |
| Dimensions | 53 × 30 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000400039

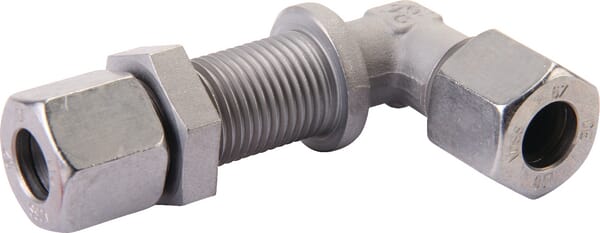

Voss Bulkhead elbow 22L WSV22L
£43.20 excl.
£51.84 incl.
In stock
Expected to ship on Monday 21 September
BPA000250634

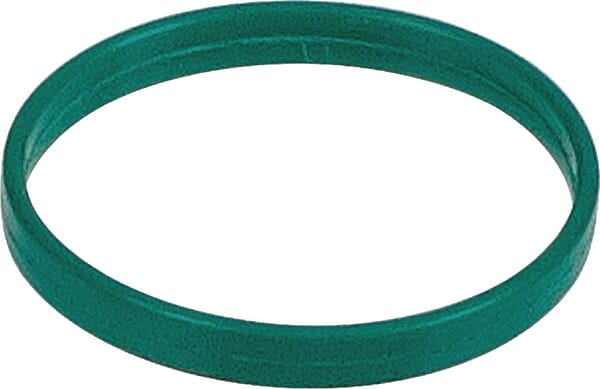

Voss Vossform seal ring 16S DVF16S
£1.08 excl.
£1.30 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000247424

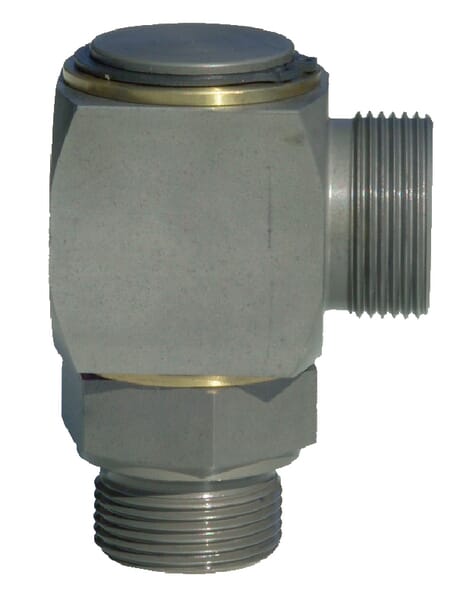

Voss Swivel banjo 22L R3/4 DGWEV22LR34
£250.86 excl.
£301.03 incl.
In stock
Expected to ship on Friday 18 September
BPA000263315

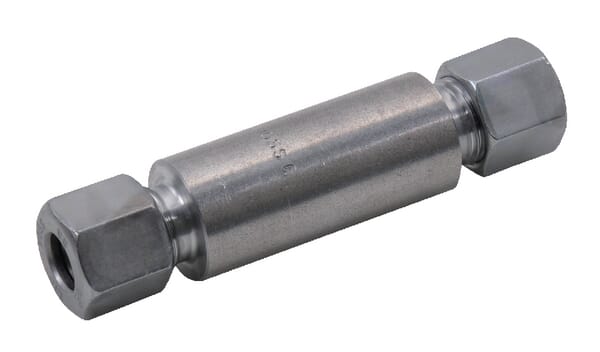

Voss Coupling 12L ESV12L
£20.61 excl.
£24.73 incl.
In stock
Expected to ship on Friday 18 September
BPA000258173
Voss Coupling 6L R1/8 EGES6LR18WD
£7.05 excl.
£8.46 incl.
In stock
Expected to ship on Friday 18 September
BPA000315050

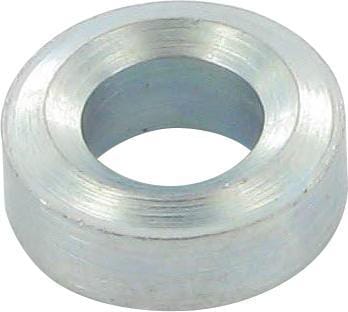

Voss Pressure gauge Ring 1/4" MA9RING14
