Roll over image to zoom in · Click to see full view
£11.04
excl. VAT
£13.25 incl. VAT
£13.25
incl. VAT
£11.04 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M20 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 12 mm |
| Connection 2, thread diameter | M20 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 24.0 mm |
| Connection no 1 diameter | 12 mm |
| DIN standard | 2401 |
| Includes | Coupling, Cutting ring, Nut |

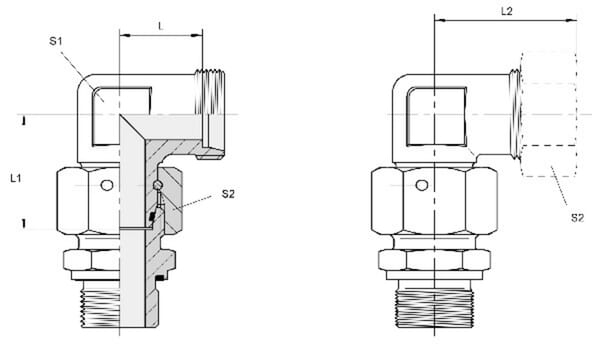

| L1Connection 2, centre to end distance | 31 mm |
| L2Connections distance | 38 mm |
| LConnection centre to insert distance | 21.5 mm |
| Long description | Application range:, Hydraulic hose, Hydraulic pipes, Details:, 2S cutting ring, Properties:, Optimised cutting ring connection and functionality, Multiple corrosion resistance |
| Max working pressure | 630 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance, Complete coupling |
| Pros | 2S cutting ring |
| S2Connection no 1 wrench size | 24.0 mm |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 12S |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 148 g |
| Dimensions | 116 × 87 × 8 mm |
| Dangerous goods | No |
You might also like

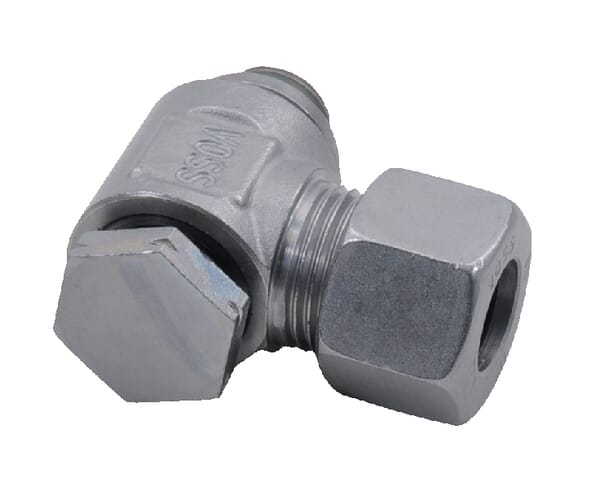

BPA000355254
Voss Banjo coupling 8L-1/4" BSP RSWV8LR14
£14.82 excl.
£17.78 incl.
In stock
Expected to ship on Friday 2 October
BPA000287372
Voss BulkHead Coupling 8L GSV8L
£5.76 excl.
£6.91 incl.
In stock
Expected to ship on Friday 2 October
BPA000232690
Voss Weldcoupling 6S ASV6S
£2.98 excl.
£3.58 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000355255
Voss Banjo coupling 8L-1/4" -WD RSWV8LR14WD
£15.44 excl.
£18.53 incl.
In stock
Expected to ship on Friday 2 October
BPA000288336
Voss Coupling 8L M14 GES8LM14WD
£2.26 excl.
£2.71 incl.
In stock
Expected to ship on Friday 2 October

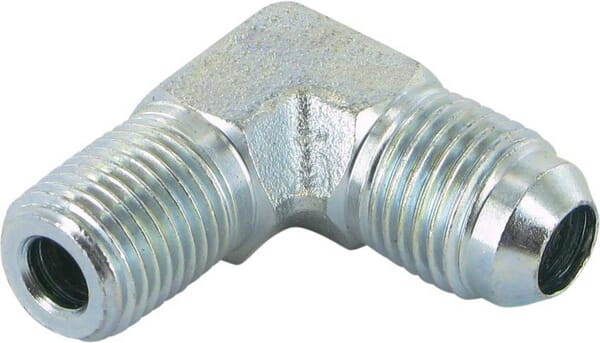

BPA000298856
