Roll over image to zoom in · Click to see full view
£34.19
excl. VAT
£41.03 incl. VAT
£41.03
incl. VAT
£34.19 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M36 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 25 mm |
| Connection 2, thread diameter | M36 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 46.0 mm |
| Connection no 1 diameter | 25 mm |
| DIN standard | 2401 |
| Includes | Coupling, Cutting ring, Nut |

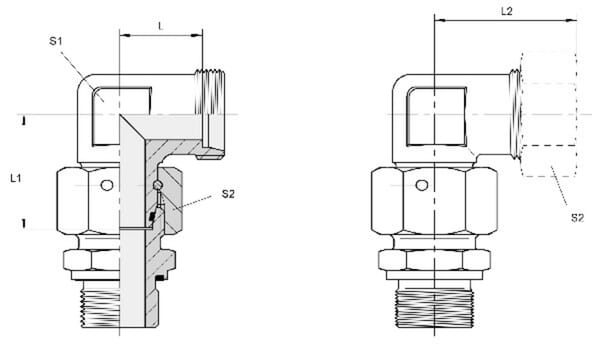

| L1Connection 2, centre to end distance | 50 mm |
| L2Connections distance | 54 mm |
| LConnection centre to insert distance | 30 mm |
| Max working pressure | 400 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance, Complete coupling |
| Pros | 2S cutting ring |
| S2Connection no 1 wrench size | 46.0 mm |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 25S |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 850 g |
| Dimensions | 85 × 75 × 47 mm |
| Dangerous goods | No |
