Roll over image to zoom in · Click to see full view
£38.12
excl. VAT
£45.74 incl. VAT
£45.74
incl. VAT
£38.12 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M36 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 28 mm |
| Connection 2, thread diameter | M36 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 41.0 mm |
| Connection no 1 diameter | 28 mm |
| DIN standard | 2401 |
| Includes | Coupling, Cutting ring, Nut |

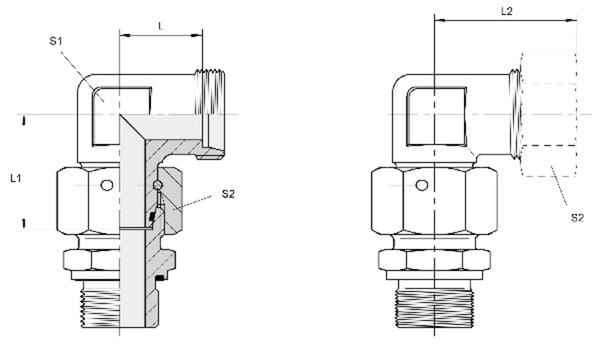

| L1Connection 2, centre to end distance | 41.5 mm |
| L2Connections distance | 47 mm |
| LConnection centre to insert distance | 30.5 mm |
| Max working pressure | 160 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance, Complete coupling |
| Pros | 2S cutting ring |
| S2Connection no 1 wrench size | 41.0 mm |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 28L |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 529 g |
| Dimensions | 75 × 70 × 55 mm |
| Dangerous goods | No |
You might also like
BPA000355184

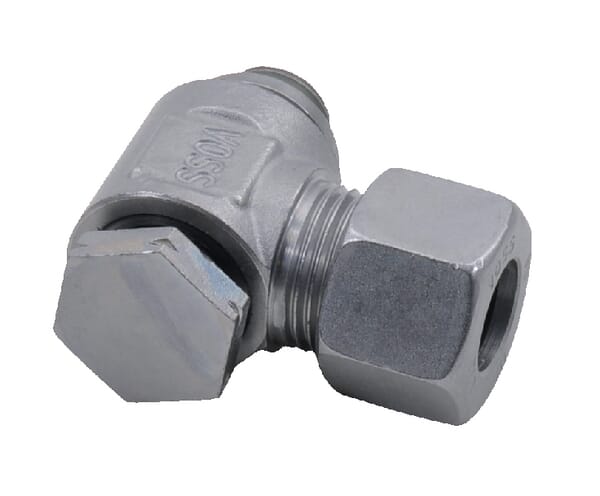

Voss Banjo coupling 10L R3/8 RSWV10LR38
£34.10 excl.
£40.92 incl.
In stock
Expected to ship on Monday 5 October
BPA000400077
Voss Elbow Coupling 15L WV15L
£11.05 excl.
£13.26 incl.
In stock
Expected to ship on Monday 5 October
BPA000288373
Voss Adaptor 8S 1/2 UNF GES8S12UNF
£13.11 excl.
£15.73 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000355288

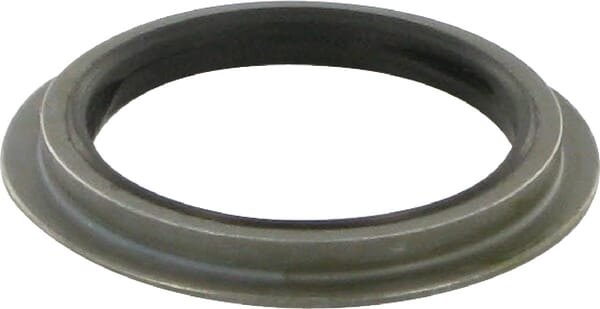

Voss RSWV seal ring NBR R3/4 RSWV9VWDR34
£7.37 excl.
£8.84 incl.
In stock
Expected to ship on Monday 5 October
BPA000268361

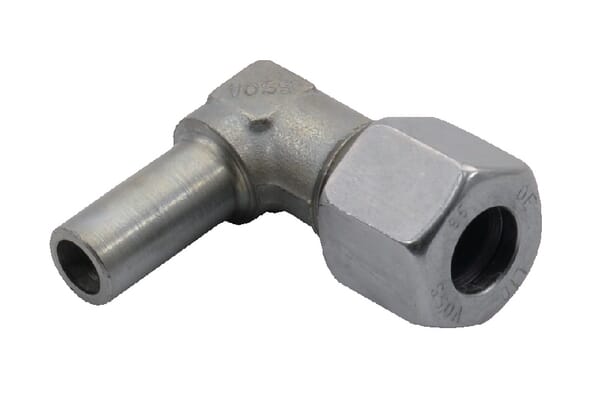

Voss Adjustable stud with nut 8L EWV8L
