Roll over image to zoom in · Click to see full view
£12.49
excl. VAT
£14.99 incl. VAT
£14.99
incl. VAT
£12.49 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | M16 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M16 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 14.0 mm |
| Connection 3, length | 40 |
| Connection 3, thread diameter | M16 |
| Connection 3, thread pitch | 1.50 mm |
| Connection 3, thread type | Metric |
| Connection 3, type | Swivel nut |
| Connection 3, type - male/female | Female |
| DIN standard | 2401, 2353, 3865 |
| Inside diameter | 8.55 mm, 6 mm |

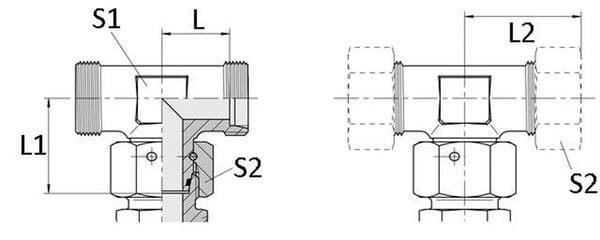

| L1Connection no 1 center to end distance | 30 mm |
| L2Connection 2, centre to end distance | 29 mm |
| LConnection 3 centre to end distance | 15 mm |
| Length | 44 mm |
| Max working pressure | 500 BAR |
| Pipe diameter | 10 mm |
| Product details | Pre-assembled with O-ring, Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Viton seal available on request |
| Pros | Reduced risk of leakage |
| S1Body height | 17 mm |
| S2Connection no 1 wrench size | 19.0 mm |
| Sealing ring inside diameter | 8.5 mm |
| Sealing ring thickness | 1.5 mm |
| Seal material | Nitrile rubber [NBR] |
| Series | L |
| Shape | Tee (T) |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 69 g |
| Dimensions | 44 × 38 × 19 mm |
| Dangerous goods | No |
You might also like
BPA000232692
Voss Weld-on coupling ASV 8L-90' ASV8L90
£5.55 excl.
£6.66 incl.
In stock
Expected to ship on Monday 5 October
BPA000232563
Voss Weldcoupling 28L ASS28L
£9.53 excl.
£11.44 incl.
In stock
Expected to ship on Monday 5 October
BPA000252369

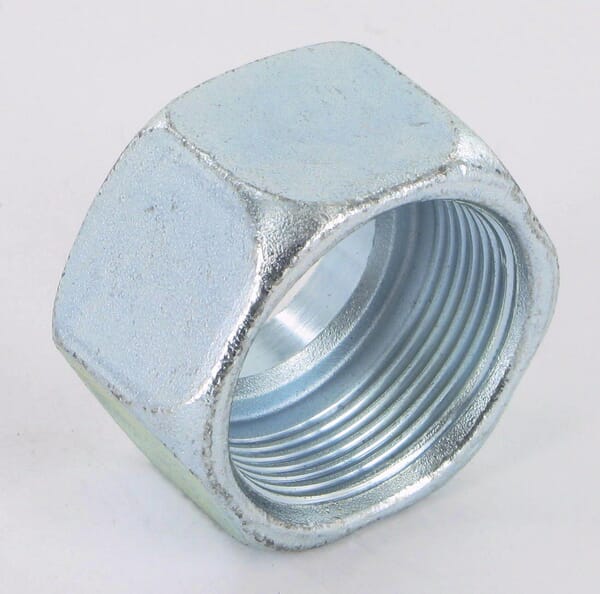

Voss EAG42N screw cap EAG42N
£17.42 excl.
£20.90 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000287456

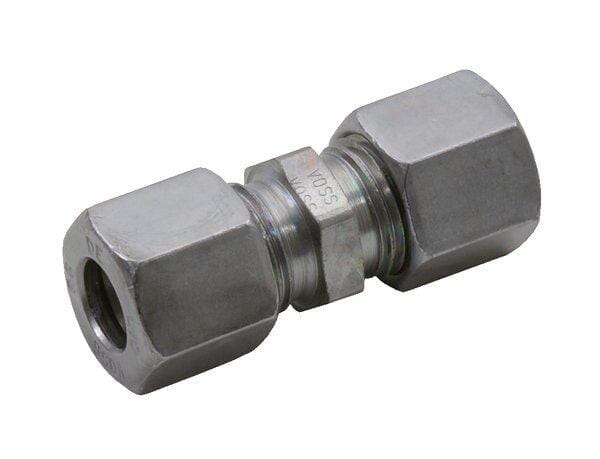

Voss Coupling 14S GV14S
