Product details
| Connection 1, thread diameter | M18 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M18 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 19.0 mm |
| Connection 3, length | 42 |
| Connection 3, thread diameter | M18 |
| Connection 3, thread pitch | 1.50 mm |
| Connection 3, thread type | Metric |
| Connection 3, type | Swivel nut |
| Connection 3, type - male/female | Female |
| DIN standard | 2401, 2353, 3865 |
| Inside diameter | 10.11 mm, 8 mm |

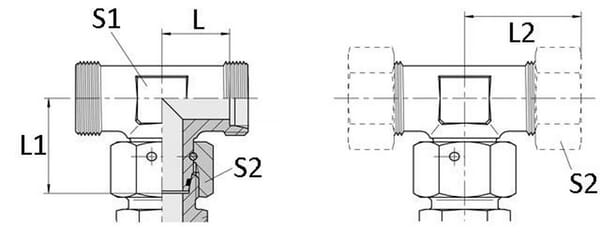

| L1Connection no 1 center to end distance | 32 mm |
| L2Connection 2, centre to end distance | 29.5 mm |
| LConnection 3 centre to end distance | 17 mm |
| Length | 48 mm |
| Max working pressure | 400 BAR |
| Pipe diameter | 12 mm |
| Product details | Pre-assembled with O-ring, Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Viton seal available on request |
| Pros | Reduced risk of leakage |
| S1Body height | 19 mm |
| S2Connection no 1 wrench size | 22.0 mm |
| Sealing ring inside diameter | 10 mm |
| Sealing ring thickness | 1.5 mm |
| Seal material | Nitrile rubber [NBR] |
| Series | L |
| Shape | Tee (T) |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8719607063838 |
|---|---|
| Unit of measure | EA |
| Weight | 123 g |
| Dimensions | 123 × 33 × 18 mm |
| Dangerous goods | No |
You might also like
BPA000224093
Voss Coupling ACAG 21x20.27 ACAG212027
£10.64 excl.
£12.77 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000396069
Voss Nipple male/female 1/2 BSP thread x3/8 BSP VRBTB0806
£4.05 excl.
£4.86 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000396350
Voss Plug+union nut 30S VSMV30S
£11.61 excl.
£13.93 incl.
In stock
Expected to ship on Friday 2 October
Free shipping

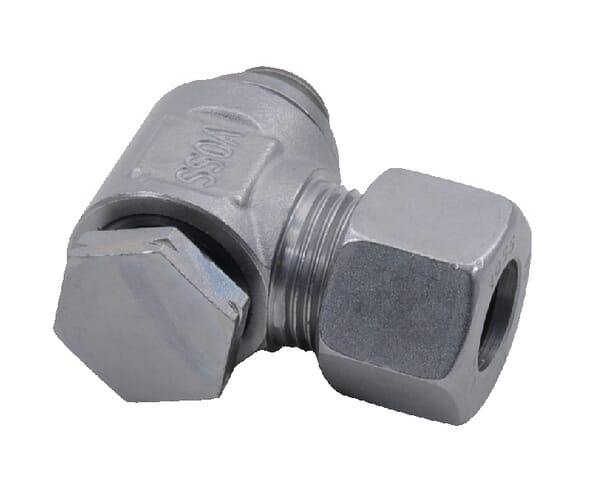

BPA000355235
Voss Swivel banjo 38S-1 12" BSP RSWV38SR112
£160.70 excl.
£192.84 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000288371
Voss Coupling 8L R1/8 GES8LRK18
£3.46 excl.
£4.15 incl.
In stock
Expected to ship on Friday 2 October

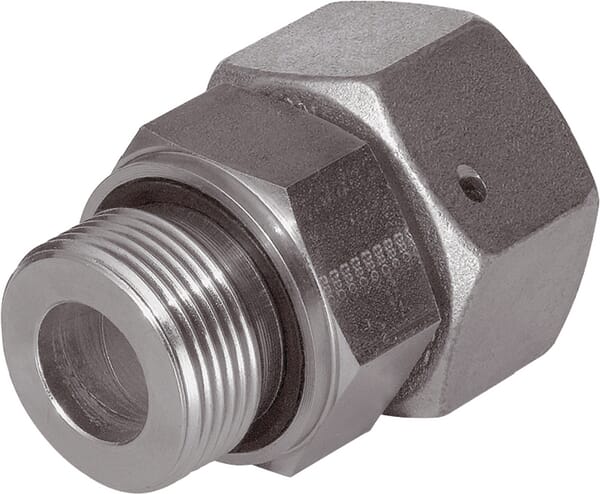

BPA000258277
