Product details
| Connection 1, thread diameter | M20 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M20 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 17.0 mm |
| Connection 3, length | 48 |
| Connection 3, thread diameter | M20 |
| Connection 3, thread pitch | 1.50 mm |
| Connection 3, thread type | Metric |
| Connection 3, type | Swivel nut |
| Connection 3, type - male/female | Female |
| DIN standard | 2401, 2353, 3865 |
| Inside diameter | 8.77 mm, 8 mm |

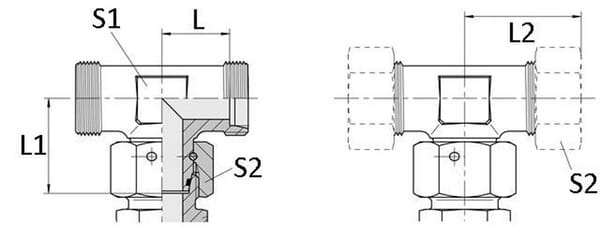

| L1Connection no 1 center to end distance | 38 mm |
| L2Connection 2, centre to end distance | 31 mm |
| LConnection 3 centre to end distance | 21.5 mm |
| Length | 58 mm |
| Max working pressure | 630 BAR |
| Pipe diameter | 12 mm |
| Product details | Pre-assembled with O-ring, Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Viton seal available on request |
| Pros | Reduced risk of leakage |
| S1Body height | 17 mm |
| S2Connection no 1 wrench size | 24.0 mm |
| Sealing ring inside diameter | 10 mm |
| Sealing ring thickness | 1.5 mm |
| Seal material | Nitrile rubber [NBR] |
| Series | S |
| Shape | Tee (T) |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 140 g |
| Dimensions | 61 × 58 × 28 mm |
| Dangerous goods | No |
