Roll over image to zoom in · Click to see full view
£15.00
excl. VAT
£18.00 incl. VAT
£18.00
incl. VAT
£15.00 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | M22 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M22 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 19.0 mm |
| Connection 3, length | 46 |
| Connection 3, thread diameter | M22 |
| Connection 3, thread pitch | 1.50 mm |
| Connection 3, thread type | Metric |
| Connection 3, type | Swivel nut |
| Connection 3, type - male/female | Female |
| DIN standard | 2401, 2353, 3865 |
| Inside diameter | 12 mm, 10 mm |

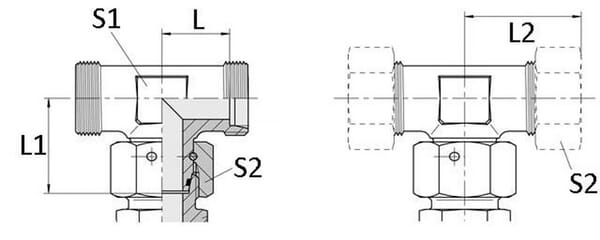

| L1Connection no 1 center to end distance | 36 mm |
| L2Connection 2, centre to end distance | 32.5 mm |
| LConnection 3 centre to end distance | 21 mm |
| Length | 56 mm |
| Max working pressure | 400 BAR |
| Pipe diameter | 15 mm |
| Product details | Pre-assembled with O-ring, Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Viton seal available on request |
| Pros | Reduced risk of leakage |
| S1Body height | 19 mm |
| S2Connection no 1 wrench size | 27.0 mm |
| Sealing ring inside diameter | 13 mm |
| Sealing ring thickness | 1.5 mm |
| Seal material | Nitrile rubber [NBR] |
| Series | L |
| Shape | Tee (T) |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 156 g |
| Dimensions | 56 × 45 × 35 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000306999
Voss Equal cross 35L KV35L
£144.92 excl.
£173.90 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000268249
Voss Cutting ring connector 30S , 45° EVSD30S
£109.68 excl.
£131.62 incl.
In stock
Expected to ship on Friday 2 October
BPA000288193
Voss Coupling 30S 15/16UNF GES30S1516UNF
£30.28 excl.
£36.34 incl.
In stock
Expected to ship on Friday 2 October
BPA000269948

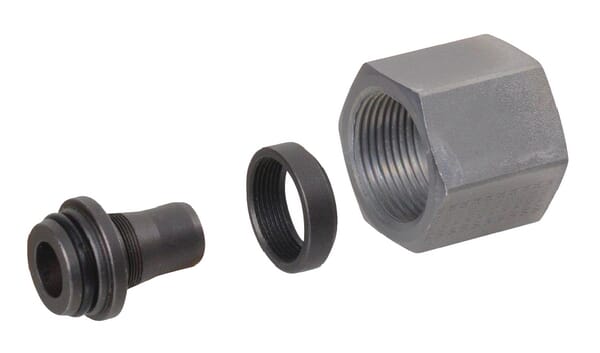

Voss Flared fitting complete 14S 14x2 FFCS142
£17.36 excl.
£20.83 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000355238
Voss Banjo coupling 6LL-M10 RSWV6LLM10
£20.85 excl.
£25.02 incl.
In stock
Expected to ship on Friday 2 October
BPA000316265

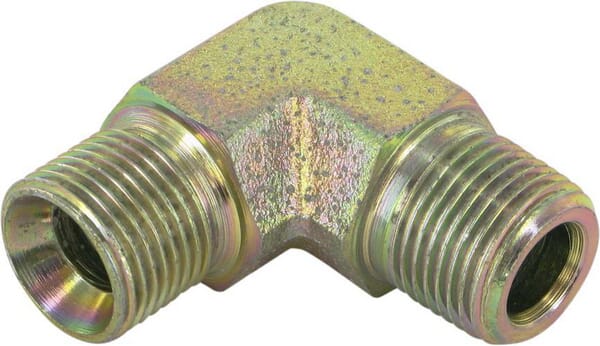

Voss Elbow 3/8 BSP x BSPT MMV9006BBT
