Roll over image to zoom in · Click to see full view
£22.57
excl. VAT
£27.08 incl. VAT
£27.08
incl. VAT
£22.57 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details

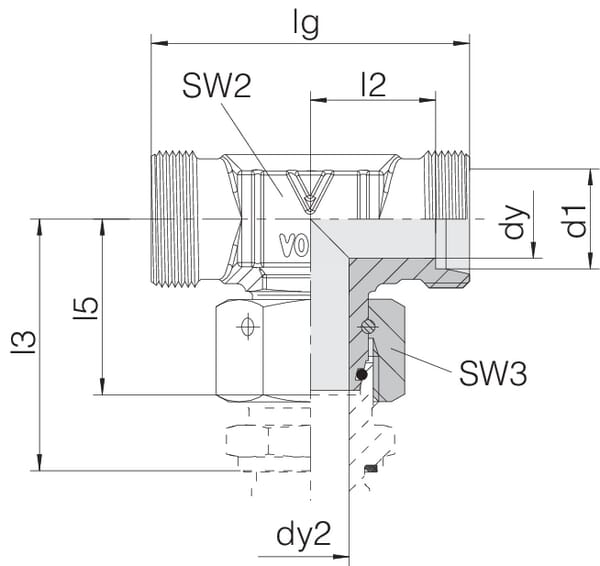

| Connection 1, thread diameter | M24 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M24 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 24.0 mm |
| Connection 3, length | 55 |
| Connection 3, thread diameter | M24 |
| Connection 3, thread pitch | 1.50 mm |
| Connection 3, thread type | Metric |
| Connection 3, type | Swivel nut |
| Connection 3, type - male/female | Female |
| DIN standard | 2401, 2353, 3865 |
| Inside diameter | 12.22 mm, 11 mm |

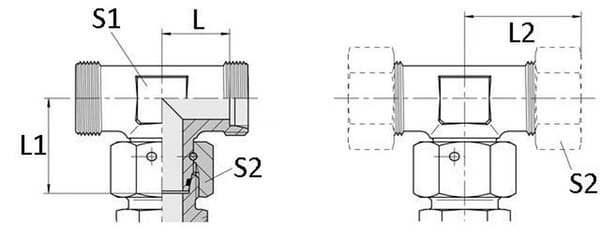

| L1Connection no 1 center to end distance | 43 mm |
| L2Connection 2, centre to end distance | 36.5 mm |
| LConnection 3 centre to end distance | 24.5 mm |
| Length | 66 mm |
| Max working pressure | 630 BAR |
| Pipe diameter | 16 mm |
| Product details | Pre-assembled with O-ring, Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Viton seal available on request |
| Pros | Reduced risk of leakage |
| S1Body height | 24 mm |
| S2Connection no 1 wrench size | 30.0 mm |
| Sealing ring inside diameter | 14 mm |
| Sealing ring thickness | 2 mm |
| Seal material | Nitrile rubber [NBR] |
| Series | S |

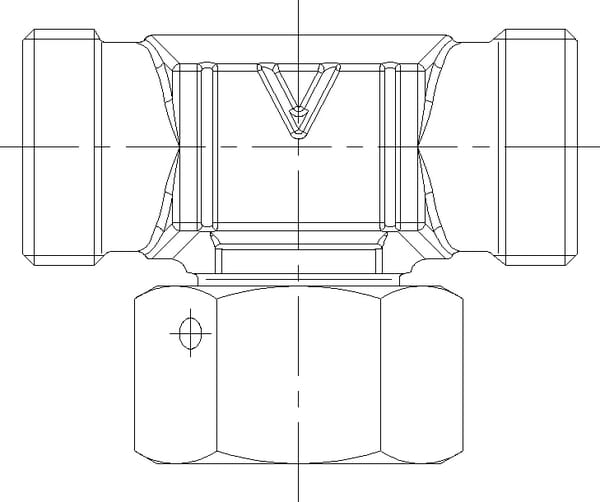

| Shape | Tee (T) |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 255 g |
| Dimensions | 66 × 50 × 35 mm |
| Dangerous goods | No |
You might also like
BPA000355190
Voss Banjo coupling 12L M16 RSWV12LM16
£16.71 excl.
£20.05 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000288623
Voss Screw connection 8LL M10K GEV8LLMK10
£2.33 excl.
£2.80 incl.
In stock
Expected to ship on Friday 2 October
BPA000352708
Voss Check valve 15LR 1/2" 1 bar RVVV15LR12
£40.12 excl.
£48.14 incl.
In stock
Expected to ship on Friday 2 October
BPA000316820
Voss Swivel nut 15L MV15L
£1.19 excl.
£1.43 incl.
In stock
Expected to ship on Friday 2 October
BPA000258166

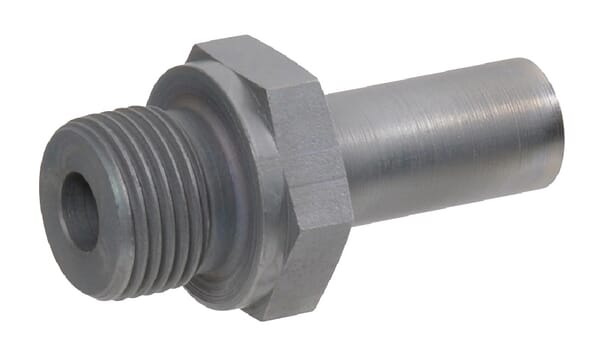

Voss Coupling 16S R1/2 EGES16SR12WD
