Roll over image to zoom in · Click to see full view
£73.03
excl. VAT
£87.64 incl. VAT
£87.64
incl. VAT
£73.03 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | M45 |
|---|---|
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M45 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 41.0 mm |
| Connection 3, length | 68.5 |
| Connection 3, thread diameter | M45 |
| Connection 3, thread pitch | 2.00 mm |
| Connection 3, thread type | Metric |
| Connection 3, type | Swivel nut |
| Connection 3, type - male/female | Female |
| DIN standard | 2401, 2353, 3865 |
| Inside diameter | 30.55 mm, 28 mm |

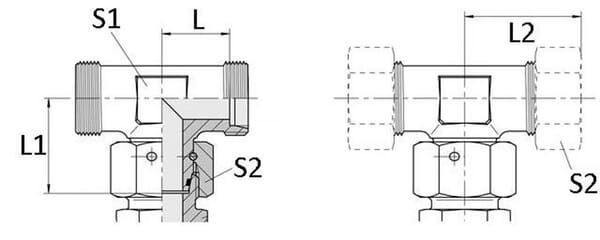

| L1Connection no 1 center to end distance | 56 mm |
| L2Connection 2, centre to end distance | 51 mm |
| LConnection 3 centre to end distance | 34.5 mm |
| Length | 90 mm |
| Max working pressure | 250 BAR |
| Pipe diameter | 35 mm |
| Product details | Pre-assembled with O-ring, Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Viton seal available on request |
| Pros | Reduced risk of leakage |
| S1Body height | 41 mm |
| S2Connection no 1 wrench size | 50.0 mm |
| Sealing ring inside diameter | 32 mm |
| Sealing ring thickness | 2.5 mm |
| Seal material | Nitrile rubber [NBR] |
| Series | L |
| Shape | Tee (T) |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 725 g |
| Dimensions | 95 × 76 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000288097
Voss Coupling 20S 3/4UNF GES20S34UNF
£25.95 excl.
£31.14 incl.
In stock
Expected to ship on Monday 5 October
BPA000251367

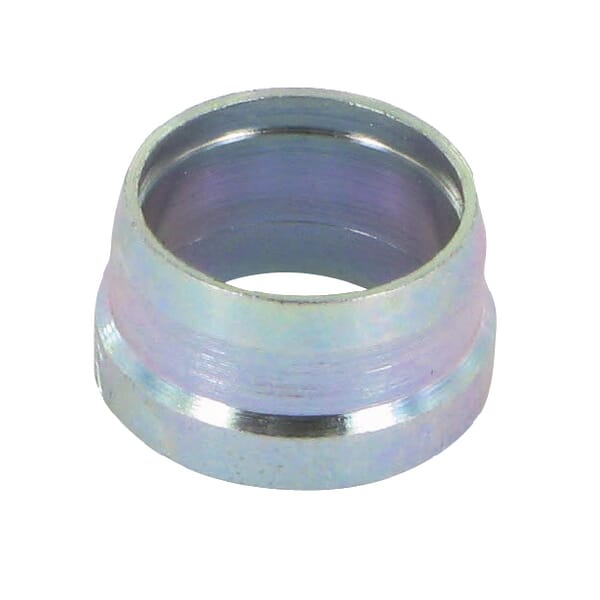

Voss Cutting ring 3/4-26,75 DAG27N
£2.89 excl.
£3.47 incl.
In stock
Expected to ship on Monday 5 October
BPA000268240
Voss Cutting ring connector 12S , 45° EVSD12S
£36.89 excl.
£44.27 incl.
In stock
Expected to ship on Monday 5 October
Free shipping
BPA000247418
Voss Swivel banjo 18L M22 DGWEV18LM22
£171.15 excl.
£205.38 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000288420
Voss Coupling 10L 9/16UNF GEV10L916UNF
£16.65 excl.
£19.98 incl.
In stock
Expected to ship on Monday 5 October
BPA000374659

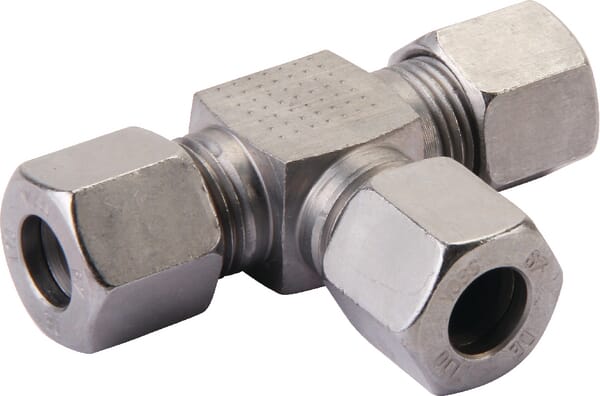

Voss T piece 15-12-12L TV151212L
