Roll over image to zoom in · Click to see full view
£115.65
excl. VAT
£138.78 incl. VAT
£138.78
incl. VAT
£115.65 excl. VAT
Free shipping
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | M52 |
|---|---|
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M52 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 50.0 mm |
| Connection 3, length | 75 |
| Connection 3, thread diameter | M52 |
| Connection 3, thread pitch | 2.00 mm |
| Connection 3, thread type | Metric |
| Connection 3, type | Swivel nut |
| Connection 3, type - male/female | Female |
| DIN standard | 2401, 2353, 3865 |
| Inside diameter | 36.55 mm, 34 mm |

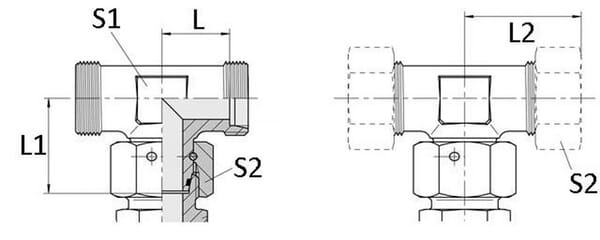

| L1Connection no 1 center to end distance | 63 mm |
| L2Connection 2, centre to end distance | 56 mm |
| LConnection 3 centre to end distance | 40 mm |
| Length | 102 mm |
| Max working pressure | 250 BAR |
| Pipe diameter | 42 mm |
| Product details | Pre-assembled with O-ring, Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Viton seal available on request |
| Pros | Reduced risk of leakage |
| S1Body height | 50 mm |
| S2Connection no 1 wrench size | 60.0 mm |
| Sealing ring inside diameter | 38 mm |
| Sealing ring thickness | 2.5 mm |
| Seal material | Nitrile rubber [NBR] |
| Series | L |
| Shape | Tee (T) |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1195 g |
| Dimensions | 101 × 84 × 63 mm |
| Dangerous goods | No |
You might also like
BPA000315174
Voss Gauge Coupl F 12 LR 1/4 BSP MAV12LR14
£4.87 excl.
£5.84 incl.
In stock
Expected to ship on Monday 5 October
BPA000258229
Voss Coupling 16S M22 EGESD16SM22WD
£10.20 excl.
£12.24 incl.
In stock
Expected to ship on Monday 5 October
BPA000258159

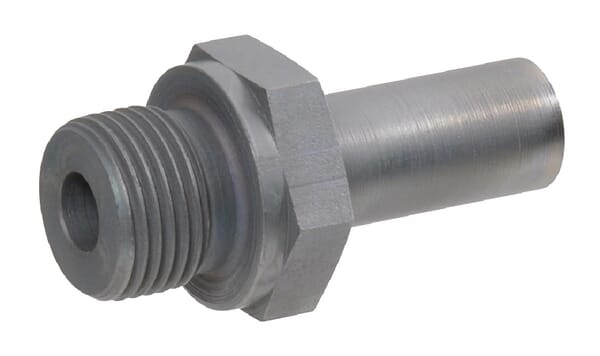

Voss Coupling 12L R1/2 EGES12LSR12WD
