Roll over image to zoom in · Click to see full view
£10.24
excl. VAT
£12.29 incl. VAT
£12.29
incl. VAT
£10.24 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | M14 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M14 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 14.0 mm |
| Connection 3, length | 37.5 |
| Connection 3, thread diameter | M14 |
| Connection 3, thread pitch | 1.50 mm |
| Connection 3, thread type | Metric |
| Connection 3, type | Swivel nut |
| Connection 3, type - male/female | Female |
| DIN standard | 2401, 2353, 3865 |
| Inside diameter | 6.33 mm, 4 mm |

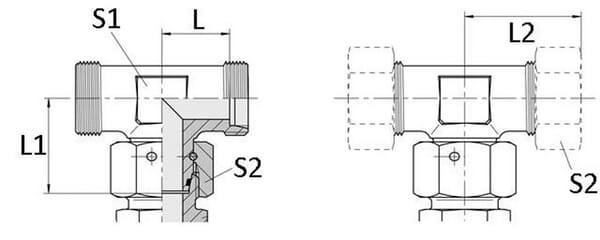

| L1Connection no 1 center to end distance | 29 mm |
| L2Connection 2, centre to end distance | 27.5 mm |
| LConnection 3 centre to end distance | 14 mm |
| Length | 42 mm |
| Max working pressure | 500 BAR |
| Pipe diameter | 8 mm |
| Product details | Pre-assembled with O-ring, Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Viton seal available on request |
| Pros | Reduced risk of leakage |
| S1Body height | 14 mm |
| S2Connection no 1 wrench size | 17.0 mm |
| Sealing ring inside diameter | 6 mm |
| Sealing ring thickness | 1.5 mm |
| Seal material | Nitrile rubber [NBR] |
| Series | L |
| Shape | Tee (T) |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 71 g |
| Dimensions | 42 × 35 × 20 mm |
| Dangerous goods | No |
